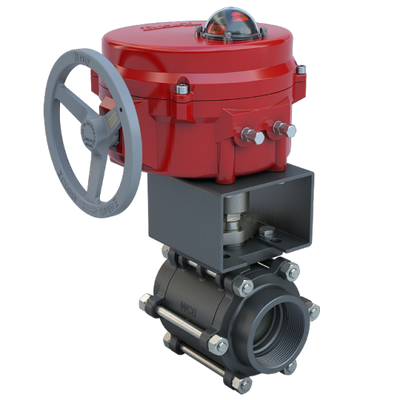

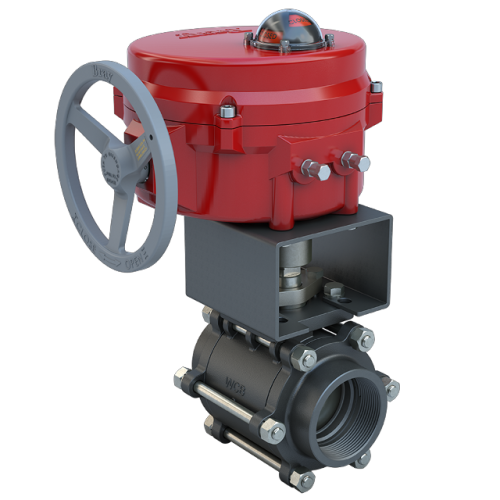

BV4-CS3-330/70-E301H | 4" 329.5 Cv On/Off. 120V NEMA 4, H | Bray
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BV4-CS3-330/70-E301H
Documents and manuals
Bray BV4-CS3-330/70-E301H Documents
Overview
Details for BV4-CS3-330/70-E301H
4" 329.5 Cv On/Off. 120V NEMA 4, H
- 4" 2-Way Industrial Ball Valve - 60? V-Cut
- Chilled Water Hot Water Up to 50% Glycol 100# Steam / -20..500?F
- CV 329.5
- 120 VAC
- On/Off
- Non-Spring Return
- 3000 in-lb Torque
- Screw Terminals
- 2 x SPDT
- Female NPT
- 30 sec Runtime
- 316 Stainless Steel Trim
- Close-Off 300 psi (Water) / 100 psi (Steam)
- NEMA 4X w/Heater
Specifications
- Product
- BV4-CS3-330/70-E301H
- Valve Size
- 4"
- 2-Way / 3-Way
- 2-Way
- Valve Product Type
- Ball Valve
- Valve Position
- Normally Open
- Valve End Connection
- NPT Threaded
- Assembly Cv
- 437.29
- Actuator Control Signal
- On/Off
- Actuator Action
- Non-Fail Safe
- Fail Position
- Fail Last
- Actuator Features
- Auxiliary Switches;Enclosed Terminal Strip;Heater;Manual Override Handwheel
- Actuator Power Supply
- 120 VAC
- Actuator Conduit Connection
- 2 x 3/4" NPT
- Actuator Area Classification
- IP65;IP67;NEMA 4;NEMA 4X
- Close Off Pressure
- 300
- Weight
- 94.7
