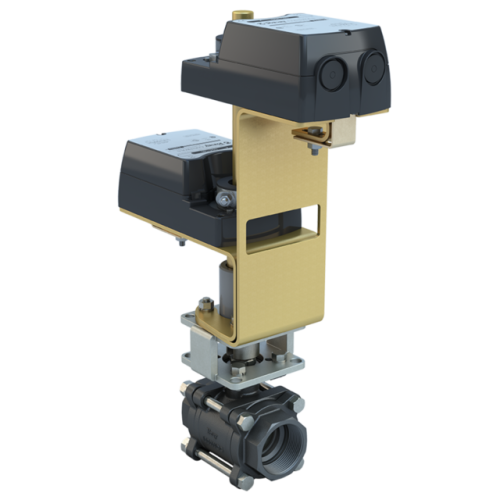

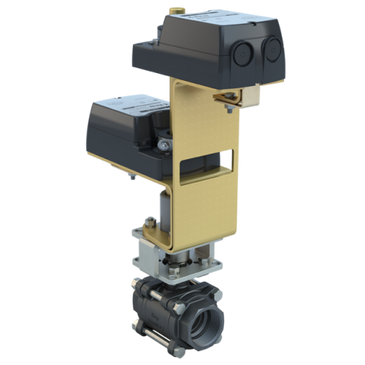

BV150-CS3-46/D24-280-D | 1.5" | 3 piece design threaded ball valve | CS | CV 59.74 | Normally Open | Damper & Valve actuator | 24 Vac/dc | 280 lb-in | on/off or floating | Non-Spring Return | dual | Bray
1.5 inch | 3 piece design threaded ball valve | CS | CV 59.74 | Normally Open | Damper & Valve actuator | 24 Vac/dc | 280 lb-in | on/off or floating | Non-Spring Return | dual
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BV150-CS3-46/D24-280-D
Documents and manuals
Bray BV150-CS3-46/D24-280-D Documents
Overview
Details for BV150-CS3-46/D24-280-D
Specifications
- Product
- BV150-CS3-46/D24-280-D
- Valve Size
- 1-1/2"
- 2-Way / 3-Way
- 2-Way
- Valve Product Type
- Ball Valve
- Valve Position
- Normally Open
- Valve End Connection
- NPT Threaded
- Assembly Cv
- 59.74
- Actuator Control Signal
- On/Off;Floating
- Actuator Action
- Non Spring Return
- Fail Position
- Fail Last
- Actuator Features
- Dual Mounted
- Actuator Power Supply
- 24 VAC/DC
- Actuator Conduit Connection
- 1/2" NPT
- Actuator Area Classification
- IP42;NEMA 2
- Close Off Pressure
- 300
- Weight
- 20.4
