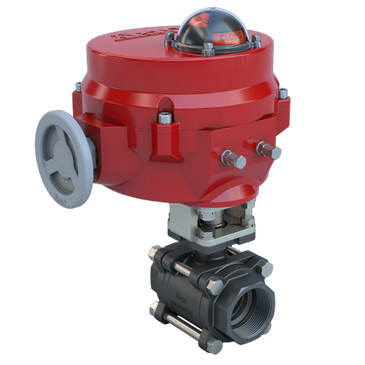

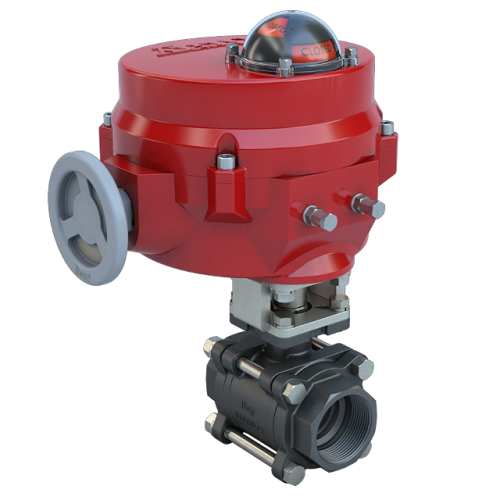

BV150-CS3-15/70-0081H | 2 Way Ball Valve | 1-1/2 Inch | 120 VAC Industrial Actuator | Bray

Brand: BraySKU: BV150-CS3-15/70-0081H

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BV150-CS3-15/70-0081H

Jump to: Overview & Specifications Reviews

Overview Details for BV150-CS3-15/70-0081H

2 Way Ball Valve | 1-1/2 Inch | 120 VAC Industrial Actuator

Description:

Bray BV150-CS3-15/70-0081H 2 Way Ball Valve, 1-1/2 Inch, 120 VAC Industrial Actuator.

BV Series threaded industrial control ball valve model BV150-CS3-15 features:
- 1-1/2 inch.
- 40 mm.

- 15 degree V-cut port.
- 14.9 Cv
- 12.8 Kv
- 2-way flow.

- 300 PSI close-off water / 100 PSI steam.

- Threaded NPT.

- WCB carbon steel body.

- Stainless steel ball and stem.

Factory installed actuator model 70-0081H features:
- 120 VAC.
- On/Off.

- NEMA type 4, 4x and IP65 enclosure.

- High visibility beacon position indicator.

- Manual declutchable override hand wheel, pull to engage, push to disengage.

- 5 watt PTC style heater.

- Auxiliary switch.

- ASTM B85 pressure die cast aluminum housing with polyester powder coat.

- Stainless steel exposed fasteners.

- 2 conduit connections.

The BV Series Threaded Industrial Ball Valve product line is ideally suited to high temperature and high pressure water or steam as well as a wide range of heavy commercial HVAC

control applications. These valves provide exceptional characterized control, high rangeability, flow capacity and pressure drops; all with bi-directional bubble tight shut off. Valves in this range feature investment cast 3 piece construction, Carbon Steel housings and Stainless Steel balls and stems with NPT threaded connections. Characterized V-Balls and full port versions provide multiple Cv values in each size.

The Series 70 industrial actuators have become the industry standard in the Commercial HVAC industry due to it’s compact, reliable design that mounts directly to Bray’s industry leading butterfly and industrial ball valves without the need for brackets and linkages. Available in torque outputs from 600 to 18,000 lb.-in. (68 to 2033 NM), 24V and 120VAC, On/Off and Modulating units all in NEMA 4x and IP65 rated housings. These actuators are ideal for use on valves for Chillers, Cooling Towers, Boilers, Heat Exchangers and other outdoor applications. Furthermore, its advanced electronics assure reliable compatibility with virtually any analog control signal used in today’s building automation and temperature control system.

There is no better choice for building automation!

Actuator Power:120V
Flow:2 Way
Valve Size (In.):1.5

Specifications

Product: BV150-CS3-15/70-0081H
Valve Size: 1-1/2"
2-Way / 3-Way: 2-Way
Valve Product Type: Ball Valve
Valve Position: Normally Open
Valve End Connection: NPT Threaded
Assembly Cv: 17.62
Actuator Control Signal: On/Off
Actuator Action: Non-Fail Safe
Fail Position: Fail Last
Actuator Features: Auxiliary Switches;Enclosed Terminal Strip;Heater;Manual Override Handwheel
Actuator Power Supply: 120 VAC
Actuator Conduit Connection: 2 x 3/4" NPT
Actuator Area Classification: IP65;IP67;NEMA 4;NEMA 4X
Close Off Pressure: 300
Weight: 27.6
