Brand: BraySKU: BV125-SS3-33/DS24-180-D

Web Price:

$1,054.35

Availability: This product is currently available to purchase

This item ships FREE*

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

BV125-SS3-33/DS24-180-D | 1.25" | 3 piece design threaded ball valve | SS | CV 43.45 | Normally Open | Damper & Valve actuator | 24 VAC/DC | 177 lb-in | on/off | Spring Return | Dual | Bray

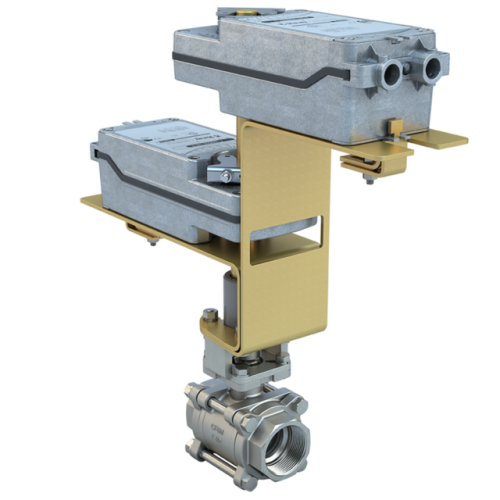

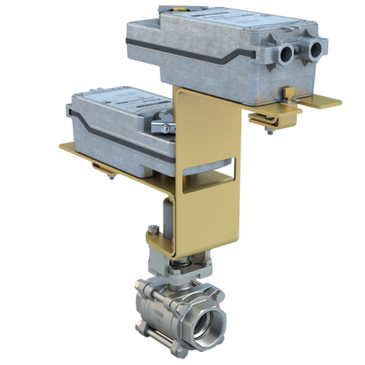

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for BV125-SS3-33/DS24-180-D

Product: BV125-SS3-33/DS24-180-D
Valve Size: 1-1/4"
2-Way / 3-Way: 2-Way
Valve Product Type: Ball Valve
Valve Position: Normally Open
Valve End Connection: NPT Threaded
Assembly Cv: 43.45
Actuator Control Signal: On/Off
Actuator Action: Spring Return
Fail Position: Fail Open
Actuator Features: Dual Mounted
Actuator Power Supply: 24 VAC/DC
Actuator Conduit Connection: 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
Actuator Area Classification: IP54;NEMA 2
Close Off Pressure: 300
Weight: 22.7
