BV125-CS3-52/DS24-180-A-D | 1.25" | 3 piece design threaded ball valve | CS | CV 65.81 | Normally Open | Damper & Valve actuator | 24 VAC/DC | 177 lb-in | on/off | Spring Return | SW | Dual | Bray

Brand: BraySKU: BV125-CS3-52/DS24-180-A-D

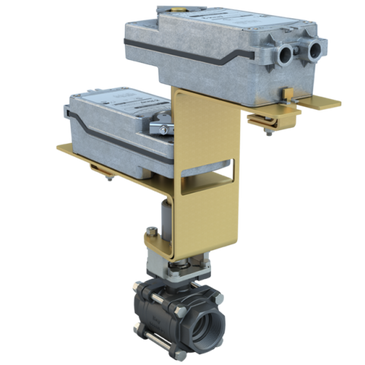

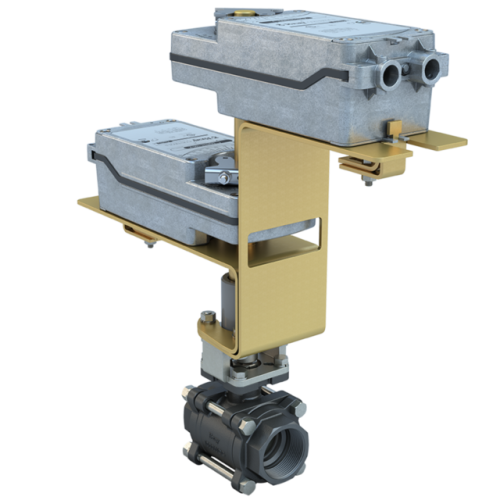

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for BV125-CS3-52/DS24-180-A-D

Product: BV125-CS3-52/DS24-180-A-D
Valve Size: 1-1/4"
2-Way / 3-Way: 2-Way
Valve Product Type: Ball Valve
Valve Position: Normally Open
Valve End Connection: NPT Threaded
Assembly Cv: 65.81
Actuator Control Signal: On/Off
Actuator Action: Spring Return
Fail Position: Fail Open
Actuator Features: Auxiliary Switches;Dual Mounted
Actuator Power Supply: 24 VAC/DC
Actuator Conduit Connection: 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
Actuator Area Classification: IP54;NEMA 2
Close Off Pressure: 300
Weight: 22.7
