Documents: BV125-CS3-33/70-24-0081SVH

Bray BV125-CS3-33/70-24-0081SVH Catalog Bray BV125-CS3-33/70-24-0081SVH Submittal Bray BV125-CS3-33/70-24-0081SVH Installer's Guide Bray 70-24-0081SVH Catalog Bray 70-24-0081SVH Submittal Bray 70-24-0081SVH Installer's Guide Bray Series 70 Battery Back Up Submittal More Info

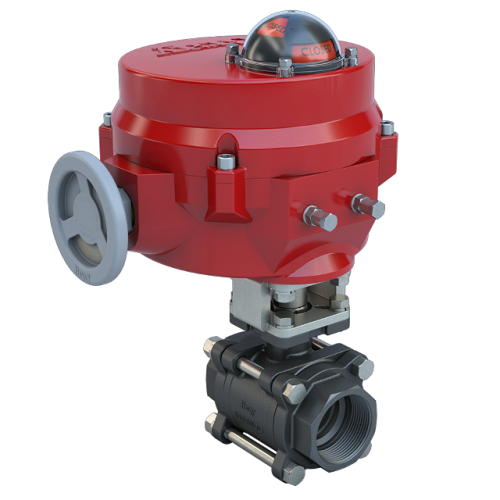

BV125-CS3-33/70-24-0081SVH | 2 Way Ball Valve | 1-1/4 Inch | 24 VAC Modulating Industrial Actuator | Bray

Brand: BraySKU: BV125-CS3-33/70-24-0081SVH

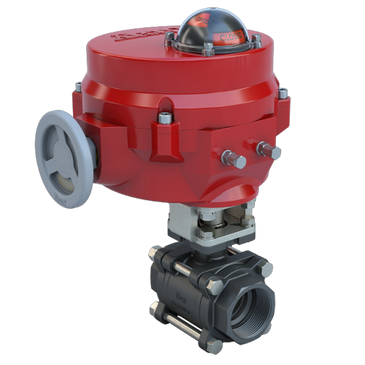

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BV125-CS3-33/70-24-0081SVH

Jump to: Overview & Specifications Reviews

Overview Details for BV125-CS3-33/70-24-0081SVH

2 Way Ball Valve | 1-1/4 Inch | 24 VAC Modulating Industrial Actuator

Description:

Bray BV125-CS3-33/70-24-0081SVH 2 Way Ball Valve, 1-1/4 Inch, 24 VAC Modulating Industrial Actuator.

BV Series threaded industrial control ball valve model BV125-CS3-33 features:
- 1-1/4 inch.
- 32 mm.

- 60 degree V-cut port.
- 33.4 Cv
- 28.8 Kv
- 2-way flow.

- 300 PSI close-off water / 100 PSI steam.

- Threaded NPT.

- WCB carbon steel body.

- Stainless steel ball and stem.

Factory installed modulating actuator model 70-24-0081SVH features:
- 24 VAC.
- Modulating with Servo NXT technology.

- One touch menu driven push button selection of all settings.

- NEMA type 4, 4x and IP65 enclosure.

- High visibility beacon position indicator.

- Manual declutchable override hand wheel, pull to engage, push to disengage.

- 5 watt PTC style heater.

- Auxiliary switch.

- ASTM B85 pressure die cast aluminum housing with polyester powder coat.

- Stainless steel exposed fasteners.

- 2 conduit connections.

- Optional 24V battery backup.

The BV Series Threaded Industrial Ball Valve product line is ideally suited to high temperature and high pressure water or steam as well as a wide range of heavy commercial HVAC

control applications. These valves provide exceptional characterized control, high rangeability, flow capacity and pressure drops; all with bi-directional bubble tight shut off. Valves in this range feature investment cast 3 piece construction, Carbon Steel housings and Stainless Steel balls and stems with NPT threaded connections. Characterized V-Balls and full port versions provide multiple Cv values in each size.

The Series 70 industrial actuators have become the industry standard in the Commercial HVAC industry due to it’s compact, reliable design that mounts directly to Bray’s industry leading butterfly and industrial ball valves without the need for brackets and linkages. Available in torque outputs from 600 to 18,000 lb.-in. (68 to 2033 NM), 24V and 120VAC, On/Off and Modulating units all in NEMA 4x and IP65 rated housings. These actuators are ideal for use on valves for Chillers, Cooling Towers, Boilers, Heat Exchangers and other outdoor applications. Furthermore, its advanced electronics assure reliable compatibility with virtually any analog control signal used in today’s building automation and temperature control system.

The Series 70 Servo NXT provides precise modulating control of valve position:

- Single Finger Technology (SFT) menu driven, pushbutton, programming with LED confirmation of all settings.

- Optical isolation of all inputs/outputs.

- Input Control - 4-20 mA or 0-10 VDC or 0-5 VDC or 2-10 VD.

- Position Feedback - 4-20 mA or 0-10 VDC or 0-5 VDC.

- Auto Calibrating.

- Fail Position.

- Speed Control.

- Manual Mode.

- On board signal generator to simplify field set up.

- Fault display simplifies troubleshooting.

- Stall detection- Eliminates mechanical damage in case of obstruction or bad switch settings.

- Provides interoperability with all controllers.

- Earth ground tolerant.

- Allows for parallel operation.

There is no better choice for building automation!

Actuator Power:24V
Flow:2 Way
Valve Size (In.):1.25

Specifications

Product: BV125-CS3-33/70-24-0081SVH
Valve Size: 1-1/4"
2-Way / 3-Way: 2-Way
Valve Product Type: Ball Valve
Valve Position: Normally Open
Valve End Connection: NPT Threaded
Assembly Cv: 10.8
Actuator Control Signal: Modulating
Actuator Action: Non-Fail Safe
Fail Position: Fail Last
Actuator Features: Auxiliary Switches;Enclosed Terminal Strip;Heater;Manual Override Handwheel
Actuator Power Supply: 24 VAC/DC
Actuator Conduit Connection: 2 x 3/4" NPT
Actuator Area Classification: IP65;IP67;NEMA 4;NEMA 4X
Close Off Pressure: 300
Weight: 22.9
