Documents: BV125-CS3-15C/DMS24-180-D

BV125-CS3-15C/DMS24-180-D | 1.25" | 3 piece design threaded ball valve | CS | CV 6.08 | Normally Closed | Damper & Valve actuator | 24 Vac/Dc | 177 lb-in | modulating | Spring Return | Dual | Bray

1.25 inch | 3 piece design threaded ball valve | CS | CV 6.08 | Normally Closed | Damper & Valve actuator | 24 Vac/Dc | 177 lb-in | modulating | Spring Return | Dual

Brand: BraySKU: BV125-CS3-15C/DMS24-180-D
Bray | BV125-CS3-15C/DMS24-180-D

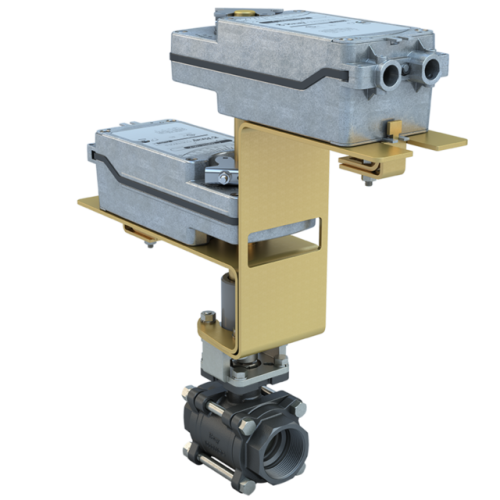

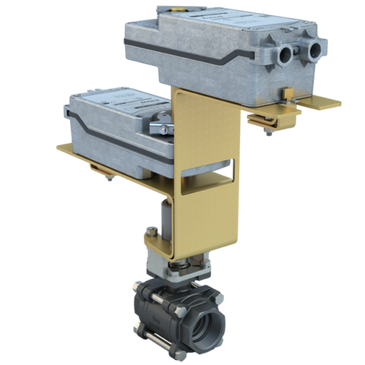

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BV125-CS3-15C/DMS24-180-D

Overview Details for BV125-CS3-15C/DMS24-180-D



Specifications

Product
BV125-CS3-15C/DMS24-180-D
Valve Size
1-1/4"
2-Way / 3-Way
2-Way
Valve Product Type
Ball Valve
Valve Position
Normally Closed
Valve End Connection
NPT Threaded
Assembly Cv
6.08
Actuator Control Signal
Modulating
Actuator Action
Spring Return
Fail Position
Fail Closed
Actuator Features
Dual Mounted
Actuator Power Supply
24 VAC/DC
Actuator Conduit Connection
3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
Actuator Area Classification
IP54;NEMA 2
Close Off Pressure
300
Weight
22.7
