Documents: BV125-CS3-15/DS24-180-D
BV125-CS3-15/DS24-180-D | 1.25" | 3 piece design threaded ball valve | CS | CV 17.37 | Normally Open | Damper & Valve actuator | 24 VAC/DC | 177 lb-in | on/off | Spring Return | Dual | Bray
1.25 inch | 3 piece design threaded ball valve | CS | CV 17.37 | Normally Open | Damper & Valve actuator | 24 VAC/DC | 177 lb-in | on/off | Spring Return | Dual

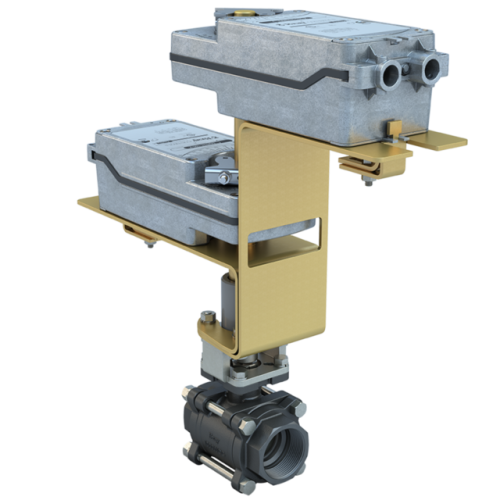

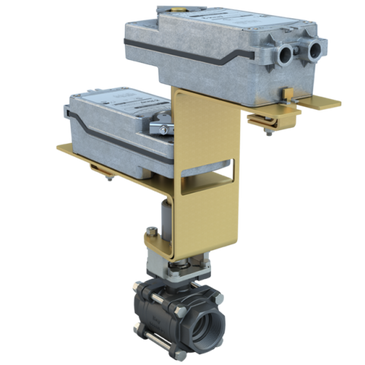

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BV125-CS3-15/DS24-180-D
Overview Details for BV125-CS3-15/DS24-180-D
Specifications
- Product
- BV125-CS3-15/DS24-180-D
- Valve Size
- 1-1/4"
- 2-Way / 3-Way
- 2-Way
- Valve Product Type
- Ball Valve
- Valve Position
- Normally Open
- Valve End Connection
- NPT Threaded
- Assembly Cv
- 17.37
- Actuator Control Signal
- On/Off
- Actuator Action
- Spring Return
- Fail Position
- Fail Open
- Actuator Features
- Dual Mounted
- Actuator Power Supply
- 24 VAC/DC
- Actuator Conduit Connection
- 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
- Actuator Area Classification
- IP54;NEMA 2
- Close Off Pressure
- 300
- Weight
- 22.7
