BV1-SS3-13/DMS24-180 | 1" | 3 piece design threaded ball valve | SS | CV 5.3 | Normally Open | Damper & Valve actuator | 24 Vac/Dc | 177 lb-in | modulating | Spring Return | Bray

Brand: BraySKU: BV1-SS3-13/DMS24-180

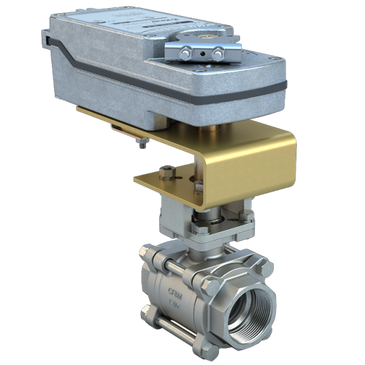

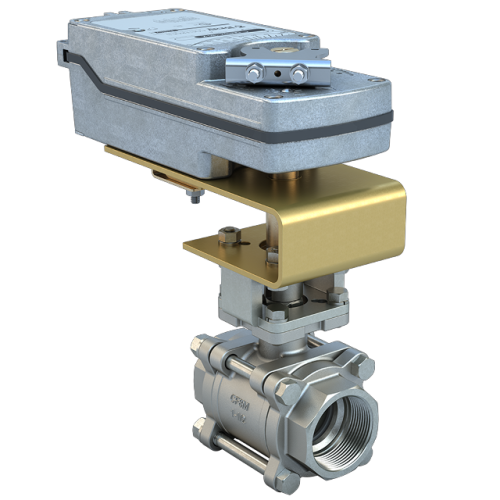

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for BV1-SS3-13/DMS24-180

Product: BV1-SS3-13/DMS24-180
Valve Size: 1"
2-Way / 3-Way: 2-Way
Valve Product Type: Ball Valve
Valve Position: Normally Open
Valve End Connection: NPT Threaded
Assembly Cv: 5.3
Actuator Control Signal: Modulating
Actuator Action: Spring Return
Fail Position: Fail Open
Actuator Power Supply: 24 VAC/DC
Actuator Conduit Connection: 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
Actuator Area Classification: IP54;NEMA 2
Close Off Pressure: 300
Weight: 14.8
