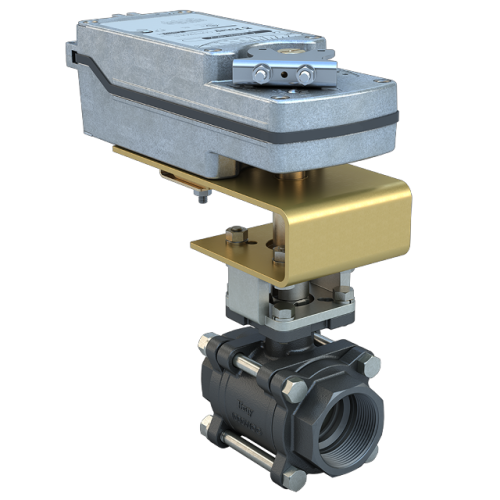

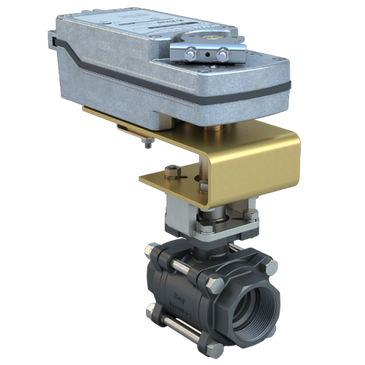

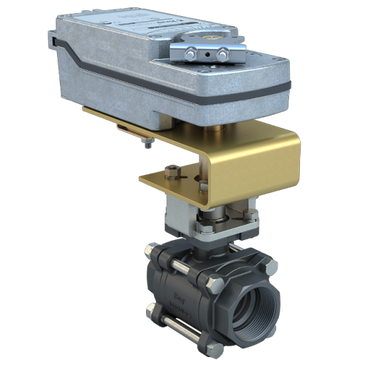

BV1-CS3-31/DS24-180 | 2 Way Ball Valve | 1 Inch | 24 VAC / VDC Spring Return Actuator | Bray
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BV1-CS3-31/DS24-180
Documents and manuals
Overview
Details for BV1-CS3-31/DS24-180
2 Way Ball Valve | 1 Inch | 24 VAC / VDC Spring Return Actuator
Description:
Bray BV1-CS3-31/DS24-180 2 Way Ball Valve, 1 Inch, 24 VAC / VDC Spring Return Actuator.
BV Series threaded industrial control ball valve model BV1-CS3-31 features:
- 1 inch.
- 25 mm.
BV Series threaded industrial control ball valve model BV1-CS3-31 features:
- 1 inch.
- 25 mm.
- 90 degree V-cut port.
- 31.4 Cv
- 27.1 Kv
- 2-way flow.
- 31.4 Cv
- 27.1 Kv
- 2-way flow.
- 300 PSI close-off water / 100 PSI steam.
- Threaded NPT.
- WCB carbon steel body.
- Stainless steel ball and stem.
Factory installed actuator model DS24-180 features:
- Spring return.
- 24 VAC or 24 VDC.
- On/Off.
Factory installed actuator model DS24-180 features:
- Spring return.
- 24 VAC or 24 VDC.
- On/Off.
- 3/8 inch flex conduit.
- Standard cable.
- Hex head screw override.
- Standard NEMA 2, IP54 enclosure.
- Optional weather shield available.
- Optional auxiliary switch available.
The BV Series Threaded Industrial Ball Valve product line is ideally suited to high temperature and high pressure water or steam as well as a wide range of heavy commercial HVAC
control applications. These valves provide exceptional characterized control, high rangeability, flow capacity and pressure drops; all with bi-directional bubble tight shut off. Valves in this range feature investment cast 3 piece construction, Carbon Steel housings and Stainless Steel balls and stems with NPT threaded connections. Characterized V-Balls and full port versions provide multiple Cv values in each size.
- Actuator Power:24V
- Flow:2 Way
- Return Position:Spring Return
- Valve Size (In.):1
Specifications
- Product
- BV1-CS3-31/DS24-180
- Valve Size
- 1"
- 2-Way / 3-Way
- 2-Way
- Valve Product Type
- Ball Valve
- Valve Position
- Normally Open
- Valve End Connection
- NPT Threaded
- Assembly Cv
- 43.89
- Actuator Control Signal
- On/Off
- Actuator Action
- Spring Return
- Fail Position
- Fail Open
- Actuator Power Supply
- 24 VAC/DC
- Actuator Conduit Connection
- 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
- Actuator Area Classification
- IP54;NEMA 2
- Close Off Pressure
- 300
- Weight
- 14.8
