Documents: BV1-CS3-105C/DMS24-180-A
BV1-CS3-105C/DMS24-180-A | 1" | 3 piece design threaded ball valve | CS | CV 45.7 | Normally Closed | Damper & Valve actuator | 24 Vac/Dc | 177 lb-in | modulating | Spring Return | SW | Bray
1 inch | 3 piece design threaded ball valve | CS | CV 45.7 | Normally Closed | Damper & Valve actuator | 24 Vac/Dc | 177 lb-in | modulating | Spring Return | SW

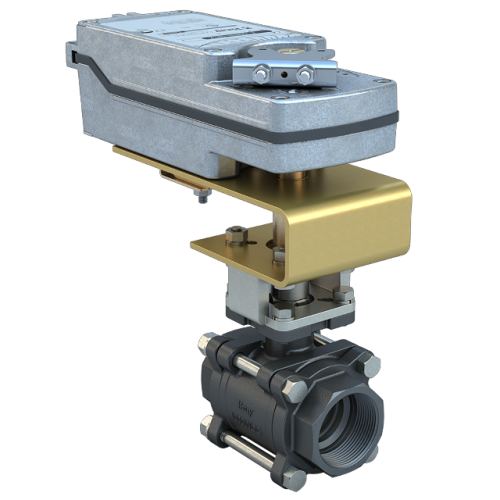

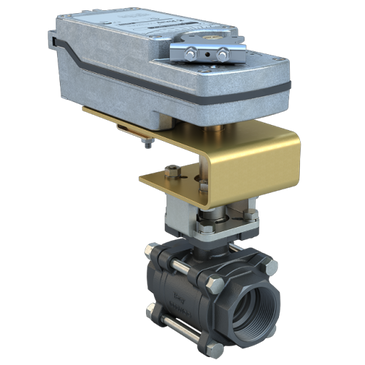

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BV1-CS3-105C/DMS24-180-A
Overview Details for BV1-CS3-105C/DMS24-180-A
Specifications
- Product
- BV1-CS3-105C/DMS24-180-A
- Valve Size
- 1"
- 2-Way / 3-Way
- 2-Way
- Valve Product Type
- Ball Valve
- Valve Position
- Normally Closed
- Valve End Connection
- NPT Threaded
- Assembly Cv
- 45.7
- Actuator Control Signal
- Modulating
- Actuator Action
- Spring Return
- Fail Position
- Fail Closed
- Actuator Features
- Auxiliary Switches
- Actuator Power Supply
- 24 VAC/DC
- Actuator Conduit Connection
- 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
- Actuator Area Classification
- IP54;NEMA 2
- Close Off Pressure
- 300
- Weight
- 14.8
