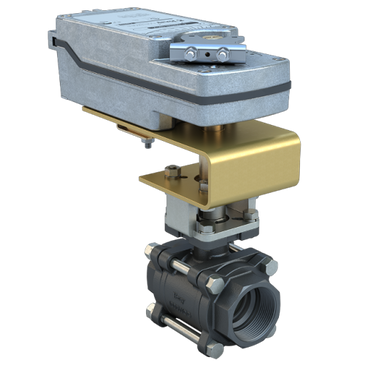

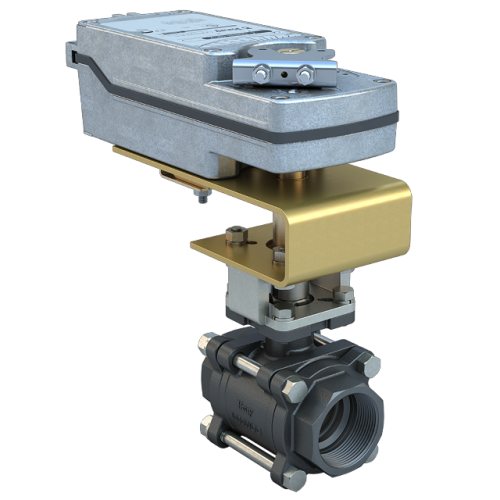

BV1-CS3-09/DS24-180 | 2 Way Ball Valve | 1 Inch | 24 VAC / VDC Spring Return Actuator | Bray

Brand: BraySKU: BV1-CS3-09/DS24-180

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BV1-CS3-09/DS24-180

Jump to: Overview & Specifications Reviews

Overview Details for BV1-CS3-09/DS24-180

2 Way Ball Valve | 1 Inch | 24 VAC / VDC Spring Return Actuator

Description:

Bray BV1-CS3-09/DS24-180 2 Way Ball Valve, 1 Inch, 24 VAC / VDC Spring Return Actuator.

BV Series threaded industrial control ball valve model BV1-CS3-09 features:
- 1 inch.
- 25 mm.

- 15 degree V-cut port.
- 8.5 Cv
- 7.3 Kv
- 2-way flow.

- 300 PSI close-off water / 100 PSI steam.

- Threaded NPT.

- WCB carbon steel body.

- Stainless steel ball and stem.

Factory installed actuator model DS24-180 features:
- Spring return.
- 24 VAC or 24 VDC.
- On/Off.

- 3/8 inch flex conduit.

- Standard cable.

- Hex head screw override.

- Standard NEMA 2, IP54 enclosure.

- Optional weather shield available.

- Optional auxiliary switch available.

The BV Series Threaded Industrial Ball Valve product line is ideally suited to high temperature and high pressure water or steam as well as a wide range of heavy commercial HVAC

control applications. These valves provide exceptional characterized control, high rangeability, flow capacity and pressure drops; all with bi-directional bubble tight shut off. Valves in this range feature investment cast 3 piece construction, Carbon Steel housings and Stainless Steel balls and stems with NPT threaded connections. Characterized V-Balls and full port versions provide multiple Cv values in each size.

Actuator Power:24V
Flow:2 Way
Return Position:Spring Return
Valve Size (In.):1

Specifications

Product: BV1-CS3-09/DS24-180
Valve Size: 1"
2-Way / 3-Way: 2-Way
Valve Product Type: Ball Valve
Valve Position: Normally Open
Valve End Connection: NPT Threaded
Assembly Cv: 9.84
Actuator Control Signal: On/Off
Actuator Action: Spring Return
Fail Position: Fail Open
Actuator Power Supply: 24 VAC/DC
Actuator Conduit Connection: 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
Actuator Area Classification: IP54;NEMA 2
Close Off Pressure: 300
Weight: 14.8
