Documents: BV05-SS3-32/70-0081H
BV05-SS3-32/70-0081H | 1/2" | 3 piece design threaded ball valve | SS | CV 32 | Normally Open | 120 VAC | Two position | 800 lb-in | NEMA 4 | Heater | Bray
1/2 inch | 3 piece design threaded ball valve | SS | CV 32 | Normally Open | 120 VAC | Two position | 800 lb-in | NEMA 4 | Heater

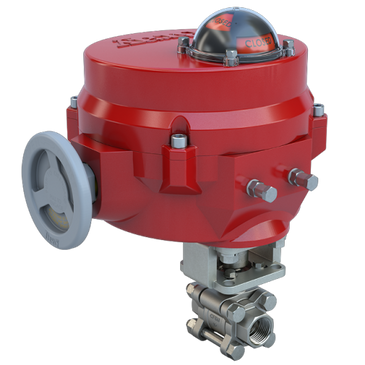

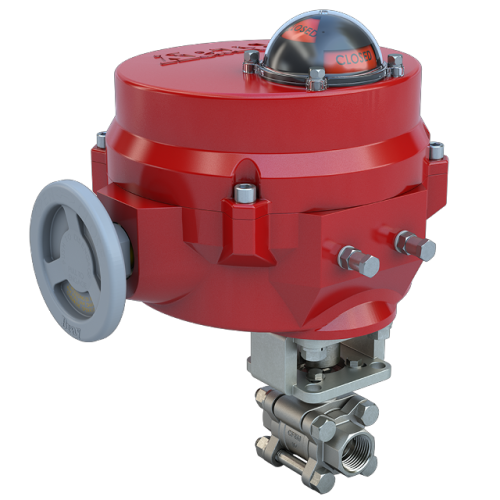

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BV05-SS3-32/70-0081H
Overview Details for BV05-SS3-32/70-0081H
Specifications
- Product
- BV05-SS3-32/70-0081H
- Valve Size
- 1/2"
- 2-Way / 3-Way
- 2-Way
- Valve Product Type
- Ball Valve
- Valve Position
- Normally Open
- Valve End Connection
- NPT Threaded
- Assembly Cv
- 32
- Actuator Control Signal
- On/Off
- Actuator Action
- Non-Fail Safe
- Fail Position
- Fail Last
- Actuator Features
- Auxiliary Switches;Enclosed Terminal Strip;Heater;Manual Override Handwheel
- Actuator Power Supply
- 120 VAC
- Actuator Conduit Connection
- 2 x 3/4" NPT
- Actuator Area Classification
- IP65;IP67;NEMA 4;NEMA 4X
- Close Off Pressure
- 300
- Weight
- 19.8
