BV05-CS3-32C/DMS24-70-A | 1/2
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!

Web Price:

$469.80
Availability: This product is currently available to purchase

Contact us for price breaks on large quantities!

Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs. Shipping and Returns Terms
Ship to Estimates
Are you from Chicago?
Yes / No
This item ships to
Change
Cancel


*shipping cost are estimated until you complete your order

The product is not cancelable or returnable unless found defective

Speak With a Technical Expert

Image for Technical Expert

Documents: BV05-CS3-32C/DMS24-70-A

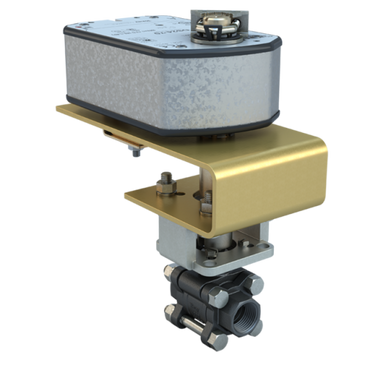

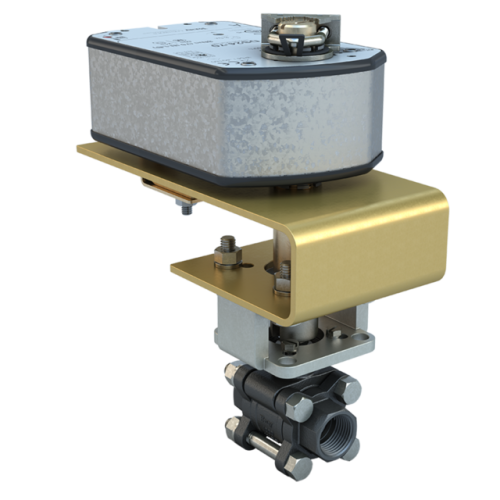

BV05-CS3-32C/DMS24-70-A | 1/2" | 3 piece design threaded ball valve | CS | CV 12.6 | Normally Closed | Damper & Valve actuator | 24 Vac/Dc | 70 lb-in | modulating | Spring Return | SW | Bray

1/2 inch | 3 piece design threaded ball valve | CS | CV 12.6 | Normally Closed | Damper & Valve actuator | 24 Vac/Dc | 70 lb-in | modulating | Spring Return | SW

Brand: BraySKU: BV05-CS3-32C/DMS24-70-A
Bray | BV05-CS3-32C/DMS24-70-A
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BV05-CS3-32C/DMS24-70-A

Overview Details for BV05-CS3-32C/DMS24-70-A



Specifications

Product
BV05-CS3-32C/DMS24-70-A
Valve Size
1/2"
2-Way / 3-Way
2-Way
Valve Product Type
Ball Valve
Valve Position
Normally Closed
Valve End Connection
NPT Threaded
Assembly Cv
12.6
Actuator Control Signal
Modulating
Actuator Action
Spring Return
Fail Position
Fail Closed
Actuator Features
Auxiliary Switches
Actuator Power Supply
24 VAC/DC
Actuator Conduit Connection
3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
Actuator Area Classification
IP54;NEMA 2
Close Off Pressure
300
Weight
10.6
