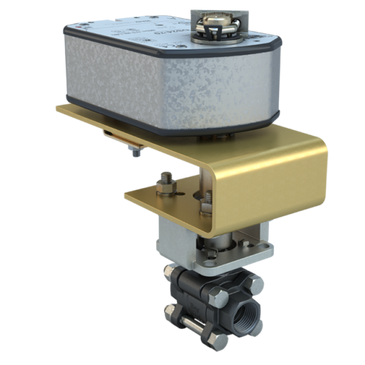

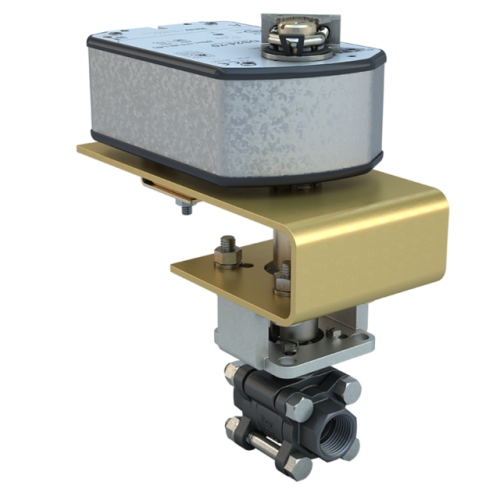

BV05-CS3-09C/DS24-70-A | 1/2" | 3 piece design threaded ball valve | CS | CV 12.78 | Normally Closed | Damper & Valve actuator | 24 VAC/DC | 70 lb-in | on/off | Spring Return | SW | Bray

Brand: BraySKU: BV05-CS3-09C/DS24-70-A

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for BV05-CS3-09C/DS24-70-A

Product: BV05-CS3-09C/DS24-70-A
Valve Size: 1/2"
2-Way / 3-Way: 2-Way
Valve Product Type: Ball Valve
Valve Position: Normally Closed
Valve End Connection: NPT Threaded
Assembly Cv: 12.78
Actuator Control Signal: On/Off
Actuator Action: Spring Return
Fail Position: Fail Closed
Actuator Features: Auxiliary Switches
Actuator Power Supply: 24 VAC/DC
Actuator Conduit Connection: 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
Actuator Area Classification: IP54;NEMA 2
Close Off Pressure: 300
Weight: 10.6
