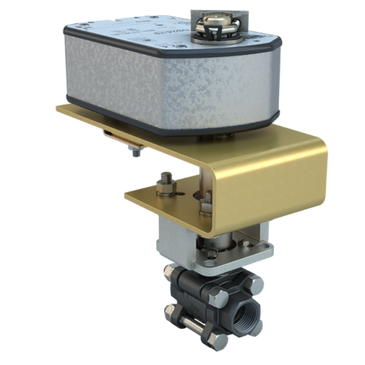

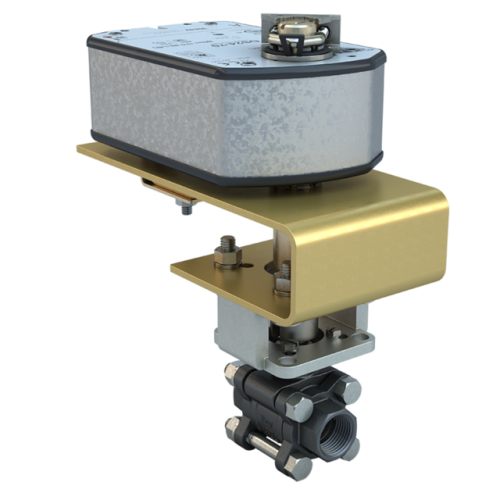

BV05-CS3-04/DS120-70 | 1/2" | 3 piece design threaded ball valve | CS | CV 4.18 | Normally Open | Damper & Valve actuator | 120 Vac | 70 lb-in | on/off | Spring Return | Bray

Brand: BraySKU: BV05-CS3-04/DS120-70

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for BV05-CS3-04/DS120-70

Product: BV05-CS3-04/DS120-70
Valve Size: 1/2"
2-Way / 3-Way: 2-Way
Valve Product Type: Ball Valve
Valve Position: Normally Open
Valve End Connection: NPT Threaded
Assembly Cv: 4.18
Actuator Control Signal: On/Off
Actuator Action: Spring Return
Fail Position: Fail Open
Actuator Power Supply: 120/240 VAC
Actuator Conduit Connection: 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
Actuator Area Classification: IP54;NEMA 2
Close Off Pressure: 300
Weight: 10.95
