AU-7080 | 120V Non Spring Return Actuator | 70800 In-Lbs | On/Off | Bray

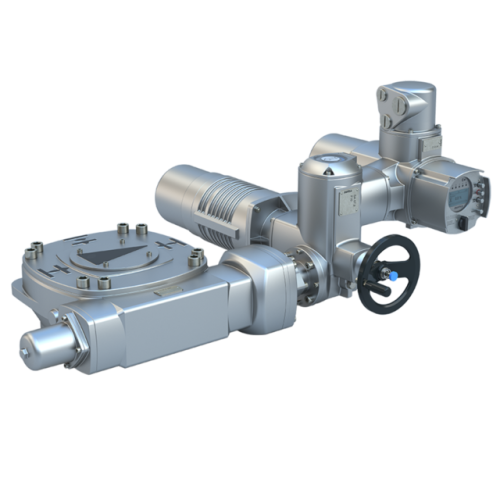

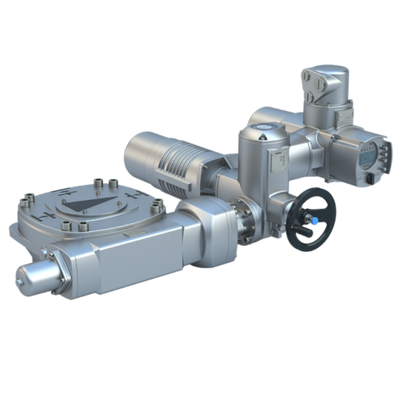

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AU-7080
Documents and manuals
Bray AU-7080 Documents
Overview
Details for AU-7080
120V Non Spring Return Actuator | 70800 In-Lbs | On/Off
Description:
Bray AU-7080 Actuator Features:
- 70800 In-Lbs.
- 120 VAC.
- On/Off.
- AUMA plug/socket connector with screw type connection.
- Integral 12.5 W heater.
- NEMA 6P, IP 68 enclosure.
- PTC thermistors motor protection.
- Direct mounting.
- Manual declutchable override hand wheel.
- Position and motor indicator lights.
- Push button controls.
Bray AU Series Electric actuators provide precise, durable control of quarter turn valves including resilient seated butterfly valves, high performance butterfly valves and industrial ball valves. The compact industrial housing is rated to NEMA 6P, IP 68 standards for outdoor use. All models include integrated controls and a manual override handwheel. The standard AU models are 120V single phase. Three phase units are available as an option. All AU Series actuators include two auxiliary switches, torque switches, a position indicator and a heater. Modulating units provide position feedback as standard. AU series actuators mount directly to Bray butterfly valves and ball valves without the need for adapter bracket. Thermal overload protection is provided by means of PTC thermistors connected directly to the motor windings.
There is no better choice for building automation!
- Actuator Power:120V
- Return Position:Non-Spring Return
Specifications
- Product
- AU-7080
- Actuator Control Signal
- On/Off
- Actuator Action
- Non-Fail Safe
- Actuator Features
- Auxiliary Switches | Enclosed Terminal Strip | Heater | Manual Override Handwheel | Torque Switches
- Actuator Power Supply
- 120 VAC
- Area Classification
- NEMA 4X | NEMA 6P
- Torque Imperial
- 70800
- Conduit Connection
- 2 x 3/4" NPT
- Weight Lbs
- 278
