AU-4068SV | 120V Non Spring Return Actuator | 40680 In-Lbs | Modulating | Bray

Brand: BraySKU: AU-4068SV
Bray | AU-4068SV

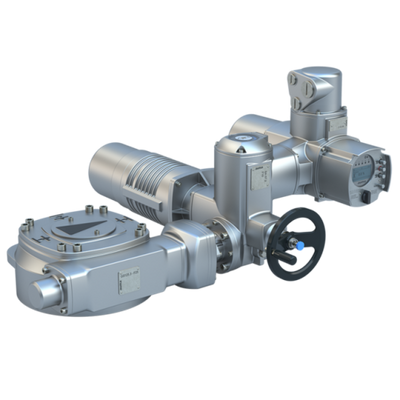

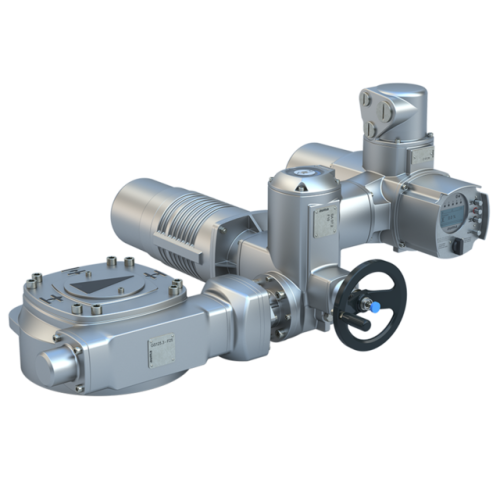

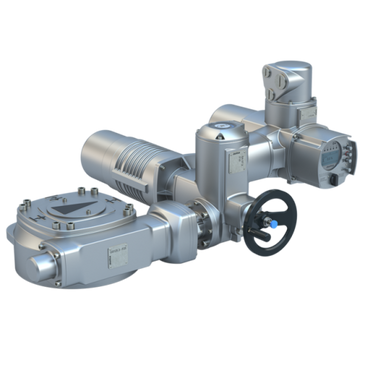

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AU-4068SV

Overview Details for AU-4068SV

120V Non Spring Return Actuator | 40680 In-Lbs | Modulating

Description:

Bray AU-4068SV Actuator Features:
- 40680 In-Lbs.
- 120 VAC.
- Modulating.
- AUMA plug/socket connector with screw type connection.
- Integral 12.5 W heater.
- NEMA 6P, IP 68 enclosure.
- PTC thermistors motor protection.
- Direct mounting.
- Manual declutchable override hand wheel.
- Position and motor indicator lights.
- Push button controls.

Bray AU Series Electric actuators provide precise, durable control of quarter turn valves including resilient seated butterfly valves, high performance butterfly valves and industrial ball valves. The compact industrial housing is rated to NEMA 6P, IP 68 standards for outdoor use. All models include integrated controls and a manual override handwheel. The standard AU models are 120V single phase. Three phase units are available as an option. All AU Series actuators include two auxiliary switches, torque switches, a position indicator and a heater. Modulating units provide position feedback as standard. AU series actuators mount directly to Bray butterfly valves and ball valves without the need for adapter bracket. Thermal overload protection is provided by means of PTC thermistors connected directly to the motor windings.

There is no better choice for building automation!
  • Actuator Power:120V
  • Return Position:Non-Spring Return


Specifications

Product
AU-4068SV
Actuator Control Signal
Modulating
Actuator Action
Non-Fail Safe
Actuator Features
Auxiliary Switches | Enclosed Terminal Strip | Heater | Manual Override Handwheel | Torque Switches
Actuator Power Supply
120 VAC
Area Classification
NEMA 4X | NEMA 6P
Torque Imperial
40680
Conduit Connection
2 x 3/4" NPT
Weight Lbs
195
