Documents: 3LSE-05L30/DCM24-310-A-D
3LSE-05L30/DCM24-310-A-D | 5" 3-Way Lugged Butterfly Valve Resilient | ANSI Class 125/150 | DI body | SS Disc | CV 470 | Damper & Valve actuator | 24 Vac | 310 lb-in | modulating | Non-Spring Return | SW | Dual | Bray
5 inch 3-Way Lugged Butterfly Valve Resilient Seated | ANSI Class 125/150 | DI body | SS Disc | CV 470 | | Damper & Valve actuator | 24 Vac | 310 lb-in | modulating | Non-Spring Return | SW | Dual

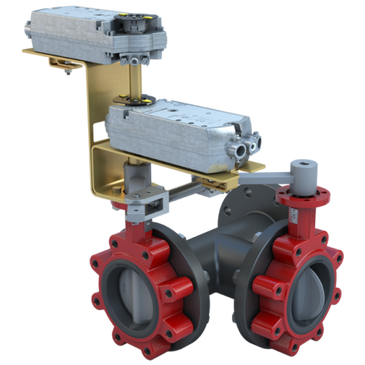

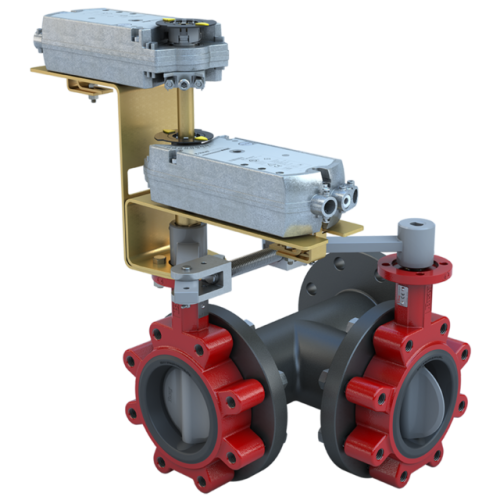

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3LSE-05L30/DCM24-310-A-D
Overview Details for 3LSE-05L30/DCM24-310-A-D
Specifications
- Product
- 3LSE-05L30/DCM24-310-A-D
- Valve Size
- 5"
- 2-Way / 3-Way
- 3-Way
- Valve Product Type
- Butterfly Valve
- Valve Position
- Master N.O. Branch/Slave N.C. Right (10)
- Valve End Connection
- ANSI Class 150 Lugged
- Assembly Cv
- 470
- Actuator Control Signal
- Modulating
- Actuator Action
- Non Spring Return
- Fail Position
- Fail Last
- Actuator Features
- Auxiliary Switches;Dual Mounted
- Actuator Power Supply
- 24 VAC
- Actuator Conduit Connection
- 3/8" Flex
- Actuator Area Classification
- IP54
- Close Off Pressure
- 50
- Weight
- 139.8
