500 | Mechanical Megaswitch 1H / 1C Gas/Elec | Braeburn
Overview
Details for 500

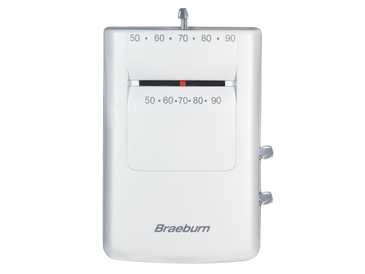

Mechanical Megaswitch 1H / 1C Gas/Elec
Features
- Dependable Switch Performance
- Environmentally Safe – Mercury-Free
- Integrated Sub-Base and Front Mounted Wiring Terminals Helps Make Installation Easy
- Separate O & B Terminals (Model 500 Only)
- Plated Terminals Reduce Corrosion
- No Leveling Required During Installation • Heavy Duty Heat Anticipator
Architectural Specifications
The megaswitch® mechanical thermostat shall be a Braeburn®, model number 500 or 505, 4.60” high x 3.13” wide x 1.25” deep. The thermostat shall be compatible with single stage gas, oil or electric heating or cooling systems including single stage heat pumps and 250mv – 750mv millivolt heating systems*. The thermostat shall have a separate sub-base and front mounted wiring terminals for trouble free installation. Temperature control range shall be between 50° and 90° F (10° and 32° C), heat anticipation of 0.15 to 1.2 amps, humidity range between 5% and 95% relative humidity. The thermostat shall be mercury free, have plated terminals to prevent corrosion and require no leveling during installation. The thermostat can be mounted to a vertical junction box.
Specifications
Item Number | 500 |
Brand | Braeburn |
Thermostat | Heat Only |
