129008 | Round Damper | 8" Round Motorized Damper Spring Return - Normally Closed | Braeburn
Details for 129008

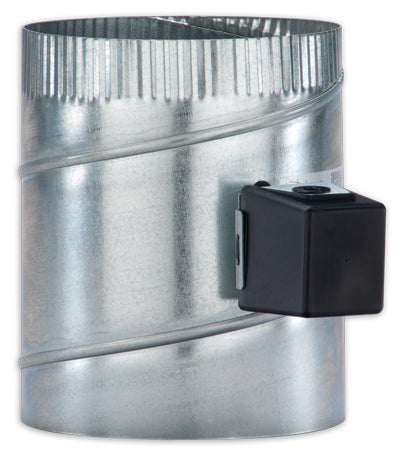

ACTUATORS ARE INSTALLED ON THE 2ND DIMENSION, PHOTO IS GENERIC AND MAY NOT REPRESENT THE PART BEING ORDERED
BRAEBURN DAMPERS ARE BUILT TO ORDER AND CANNOT BE CANCELED OR RETURNED UNLESS RENDERED DEFECTIVE BY MANUFACTURER UPON INSPECTION
Round Damper | 8" Round Motorized Damper Spring Return - Normally Closed
Braeburn Motorized Round Zone Dampers are used to control the volume of air that will be distributed to a zone area. With easy two wire installation and a stall and backlash protected motor, our zone dampers provide the quality and durability you have come to expect from Braeburn.
Quick and Easy Installation
Braeburn power open spring return dampers were designed and built to ensure easy installation and years of trouble free use. Each damper is formed from heavy duty galvanized steel.
Product Features and Benefits
- Power Open Spring Return with Power Fail Close Operation
- Long life Full Stall Capable Motor Provides Years of Trouble Free Operation
- Virtually Silent Clock Drive Motor
- Heavy Duty Galvanized Construction with Precision Rolled Stiffening Ribs
The Round Power Open / Spring Return Damper shall be Braeburn Series 1290XX where XX indicates damper diameter (04, 05, 06, 07, 08, 09, 10, 12, 14, 16, 18 and 20 inches). The damper shall be powered directly from zone panel 24 VAC damper terminals. A common wire along with a power open wire shall be provided for damper control. In the event of a power failure, no readjustment shall be required. The PO/SR Damper shall have an inlet end and a crimped fitment on the outlet end to accept mating duct work of the same diameter. The damper shall be constructed of rolled and welded steel with stiffening ribs to increase damper rigidity. The drive motor shall self close upon the removal of power from the damper. The Braeburn Advantage The Best Value in Zoning Today® • Suitable for light commercial and residential installation • Designed for years of trouble free operation • Fully compatible with other Braeburn zoning system components Braeburn Thermostats and Accessories From our Deluxe Series to our economical Builder Series, Braeburn has the products you need to lower energy costs and increase comfort in any home or business environment. Call Us Toll-Free 866.268.5599 (U.S.) +1.630.844.1968 (Outside the U.S.) www.braeburnonline.com P
- Item Number
- Size (in)
- Spring Return
- Spring Return (NC)
- Round Dampers
Braeburn 129008 Documents
Great Power Open and Spring Return
This was recommended by a colleague of mine due its power opening spring return with a Power Fail Close Operation feature. It has a durable Full Stall Capable Motor that offers years of trouble-free operation. It's not noisy and it has a heavy-duty galvanized construction with exactly rolled stiffening ribs.
