119108 | Round Damper | 8" Round Bypass Damper | Braeburn

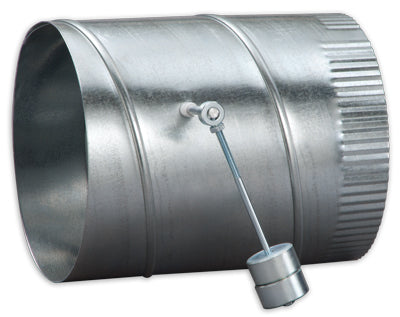

Round Damper | 8" Round Bypass Damper

Braeburn Round Bypass Dampers are used to maintain proper static pressure at the system plenum. When air flow conditions permit, the static damper is an economical alternative to an electrically controlled bypass damper. System pressure is controlled without the use of sensors or wiring by using a field adjusted sliding weight. Precision cut, heavy gauge steel is galvanized to help ensure long life.

Quick and Easy Installation Braeburn round bypass dampers are designed for quick and easy installation. From the fully crimped outlet end to the computer designed stiffening ribs, this product reflects the quality and durability you have come to expect from Braeburn. For added ease of installation, this damper requires no wiring.

Product Features and Benefits

• Can be Mounted Vertically or Horizontally
• Fully Adjustable Control Allows for Damper to be Installed in Many Mounting Positions
• Long Life Precision Bushings
• Stiffening Ribs Add to Damper Rigidity
• No Wiring or Sensors Required
• High Visibility Damper Position Indicator

Architectural Specifications

The Static Pressure Damper shall be Braeburn Series 1191XX where XX indicates damper diameter (07, 08, 10, 12, 14, 16, 18 or 20 inches). The damper shall require no electrical power and shall control bypass air volume by means of a field adjustable damper weight. In the event of a power failure, no readjustment shall be required. The Static Pressure Damper shall have an inlet end and a crimped fitment on the outlet end to accept mating duct work of the same diameter. A field reversible control will allow interchanging of the inlet and outlet end as required. The damper shall be constructed of rolled steel with precision bushing and stiffening ribs to increase damper rigidity. A damper position indicator shall be included to display the current damper positioning.
