119020 | Round Damper | 20" Round Motorized Damper Spring Return - Normally Open | Braeburn
Overview
Details for 119020

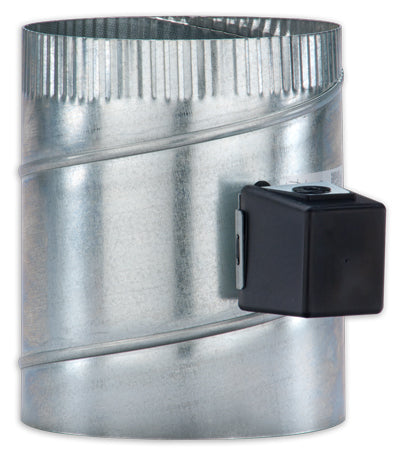

Round Damper | 20" Round Motorized Damper Spring Return - Normally Open
Braeburn Motorized Round Zone Dampers are used to control the volume of air that will be distributed to a zone area. With easy two wire installation and a stall and backlash protected motor, our zone dampers provide the quality and durability you have come to expect from Braeburn.
Quick and Easy Installation Braeburn power close spring return dampers were designed and built to ensure easy installation and years of trouble free use. Each damper is formed from heavy duty galvanized steel.
Product Features and Benefits
- Power Close Spring Return with Power Fail Open Operation
- Long life Full Stall Capable Motor Provides Years of Trouble Free Operation
- Virtually Silent Clock Drive Motor
- Heavy Duty Galvanized Construction with Precision Rolled Stiffening Ribs
Architectural Specifications
The Round Power Close / Spring Return Damper shall be Braeburn Series 1190XX where XX indicates damper diameter (04, 05, 06, 07, 08, 09, 10, 12, 14, 16, 18 and 20 inches). The damper shall be powered directly from zone panel 24 VAC damper terminals. A common wire along with a power close wire shall be provided for damper control. In the event of a power failure, no readjustment shall be required. The PC/SR Damper shall have an inlet end and a crimped fitment on the outlet end to accept mating duct work of the same diameter. The damper shall be constructed of rolled and welded steel with stiffening ribs to increase damper rigidity. The drive motor shall self open upon the removal of power from the damper.
Specifications
Item Number | 119020 |
Brand | Braeburn |
Motorized | Yes |
Shape | Round |
Size (in) | 20 |
Spring Return | Spring Return (NO) |
Type | Round Dampers |
