111808 | Rectangular Damper | 18x8 MOTORIZED DAMPER SPRING RETURN - NORMALLY OPEN | Braeburn

Brand: BraeburnSKU: 111808

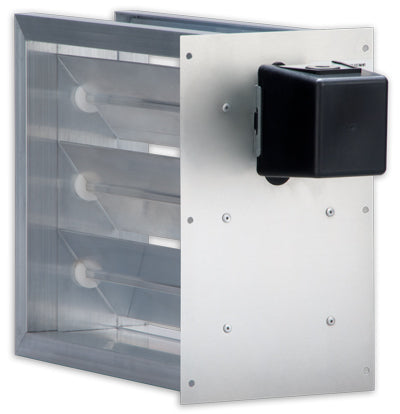

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 111808

Jump to: Overview & Specifications Reviews

Overview Details for 111808

ACTUATORS ARE INSTALLED ON THE 2ND DIMENSION

Rectangular Damper | 18x8 MOTORIZED DAMPER SPRING RETURN - NORMALLY OPEN

Braeburn rectangular zone dampers are the solution to power close/spring return applications. With economical 2 wire installation, this damper will control air distribution in zoned areas that use rectangular ducts. The dampers are made from precision formed aluminum to ensure quick installation. All dampers feature low friction bearings to provide long life and quiet operation.

Quick and Easy Installation Braeburn rectangular dampers come complete and ready for installation. All motors are mounted on the height dimension. For bottom mount applications, choose a damper like 111014 that will fit in a 10 inch tall duct mounted between 16 inch center floor joists

Product Features and Benefits

Solid precision cut aluminum frame
Parallel blade design for quieter air flow
Easy slip-in design for quick installation
Advanced design with very low leakage
Long life quiet bushings

Architectural Specifications

The Rectangular Power Close / Spring Return Damper shall be Braeburn Series 11XXXX where XXXX indicates damper length and width in even inch increments. The damper shall be powered directly from zone panel 24 VAC damper terminals. A common wire along with power close wire shall be provided for damper control. In the event of a power failure, no readjustment shall be required. The PC/SR Damper shall be a bidirectional design with no predefined inlet or outlet. The damper shall be constructed of formed aluminum with precision bushings and stiffened damper blades. The drive motor shall self open upon the removal of power from the damper.
