60B0B1000 | Ecocirc 20-18 Variable Speed ECM Smart Circulator, Flanged | Bell & Gossett

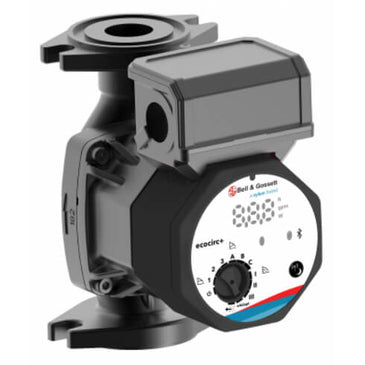

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 60B0B1000

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bell & Gossett 60B0B1000 Documents

Datasheet Catalog PartS & Accessories Installation Instructions

Overview

Details for 60B0B1000

Ecocirc 20-18 Variable Speed ECM Smart Circulator, Flanged

The newest generation variable speed ECM smart circulator, ecocirc 20-18 from Bell & Gossett provides a superior product for both heating and cooling as well as potable water.

Product Features:

Maximum of 20 feet of head or 18 GPM
70W maximum power
3 modes - proportional pressure, constant pressure, or adjustable speed control
CircGuard- complete integrated system protection
Automatic air purge to remove any air trapped in the pump
One turn knob and multicolor LED display for easy reading and setting of the pump
Maximum Working Pressure: 145 psi
Fluid temperature: 14° to 230°F
1" Noryl Check Valve included in box
Insulation shell included

Specifications

Item Number	60B0B1000
Brand	Bell & Gossett
Hertz	50/60
Material	Cast Iron
Max Pressure	145 psi
Max Temp (F)	230°F
Min Temp (F)	14°F
Phase	1
Product Type	Pump
Pump Type	Cast Iron Pumps
Series	Ecocirc Series Cast Iron Pumps
Type	Circulator
Type	Pump
Voltage	115v
