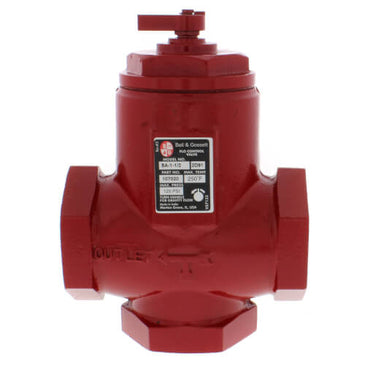

107020 | 1-1/2" Straight-Angle Flow Control | Bell & Gossett

Brand: Bell & GossettSKU: 107020

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 107020

Jump to: Overview & Specifications Reviews

Overview Details for 107020

1-1/2" Straight-Angle Flow Control

The Bell & Gossett straight angle flow control valve accomplishes two things. First the Flo-Control valve acts as a check valve, keeping the system flow from short-circuiting into places where it doesn't belong. Second, and just as important, the Bell and Gossett Flo-Control valve stops hot water from migrating into a zone that's not calling for heat.

Specifications

Item Number	107020
Brand	Bell & Gossett
Application	Flow Control
Body Pattern	Straight-Angle
Connection Type	FNPT x FNPT
Material	Iron
Max Pressure (PSI)	125
Position	Vertical
Size	1-1/2"
SubType	Flow Control Valves
Temperature Range (F)	250°F Max
Type	Valve
