Documents: 101236LF

Datasheet Catalog PartS & Accessories Installation Instructions

101236LF | CTFS-3/4, 3/4" Sweat Check-Trol Isolation Flow Control Flange, Lead Free | Bell & Gossett

3/4" Sweat Check-Trol Isolation Flange

Brand: Bell & GossettSKU: 101236LF

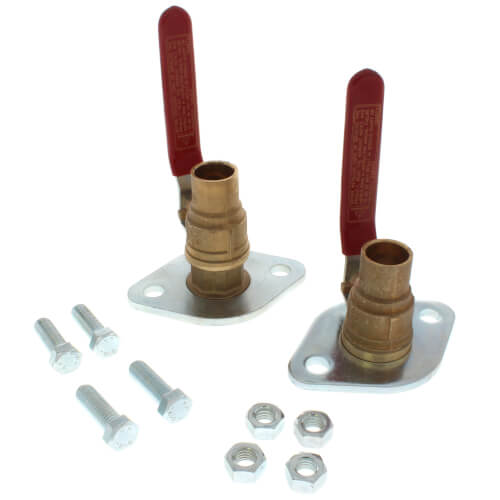

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 101236LF

Jump to: Overview & Specifications Reviews

Overview Details for 101236LF

CTFS-3/4, 3/4" Sweat Check-Trol Isolation Flow Control Flange, Lead Free

The Check-Trol flange is a combination isolation valve, flow control valve, and companion flange for circulators. Thefull port ball valve allows the circulator to be removed from the system without draining the system. The internal springcheck prevents gravity circulation. Free floating companion flange makes pump installation a snap.

Flow Control Valve
Prevents gravity circulation and flow in the wrong direction.

Isolation Valve
Allows for servicing or replacement of the circulator without draining the system.

Companion Flange
Free-floating companion flanges allow easy alignment for optimal handle positioning.

Another advantage of the Check-Trol is the minimal pressure drop, especially when compared to the losses thatcan be experienced when a check valve is installed internal to the circulator. The Check-Trol flanges are packaged with an isolation flange of the same size to create a pair. Capscrews and nuts are included.

**NOTE: See "User Guide" document below for a description of pump models applicable for this Check-Trol

Specifications

Item Number	101236LF
Brand	Bell & Gossett
Accessory	Flanges
Connection Size	3/4"
Connection Type	Sweat
Family	A-FLANGES
Material	Brass
Max Pressure (PSI)	150
Max Temp (F)	200°F
Type	Accessory
