103316LF | 1/25 HP, NBF-18S Bronze Circulator Pump, Lead Free | Bell & Gossett

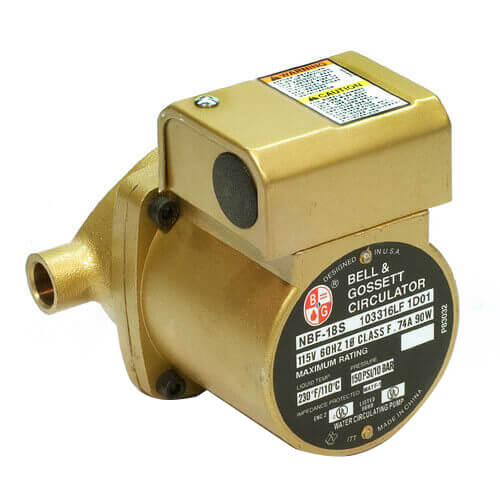

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 103316LF

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bell & Gossett 103316LF Documents

Datasheet Catalog PartS & Accessories Installation Instructions

Overview

Details for 103316LF

1/25 HP, NBF-18S Bronze Circulator Pump, Lead Free

A series of in-line wet rotor circulation pumps designed specifically for quiet operation in open (potable) water systems. These pumps have leadfree bronze bodies.

Automatic Timer and Aquastat accessories are available.
High starting torque provides years of trouble-free start-ups
Unique B&G DuraGlide Bearing System assures whisper-quiet, maintenance-free operation
Closed impeller design improves operating efficiency
3-year warranty

Specifications

Item Number	103316LF
Brand	Bell & Gossett
Amperage	0.74
Application	Heating
Connection Size	1/2"
Connection Type	Sweat
Family	CIRCULATOR PUMPS
Flow Range (GPM)	0-15
Head Range (ft.)	0-16
Hertz	60
Horse Power	1/25
HP	1/25
Material	Bronze
Max Flow (GPM)	15
Max Head (Ft)	16
Max Pressure (PSI)	150
Max Temp (F)	230°F
Phase	1
Pump Type	Bronze Pumps
Pump Type	Circulator Pumps
RPM	3000
Series	NBF Series Bronze Pumps
Type	Pump
Voltage	115v
