103261LF | 1/40 HP, NBF-12U/LW Bronze Circulator Pump, Lead Free | Bell & Gossett

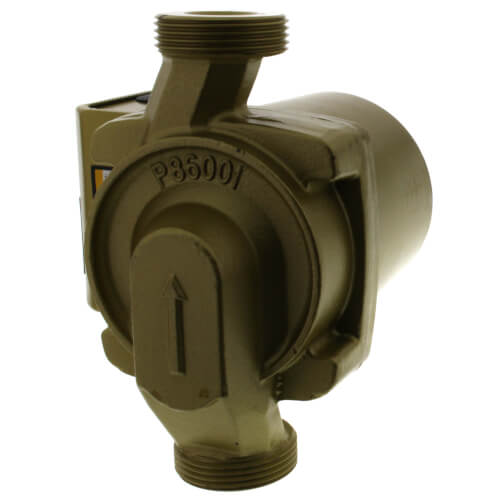

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 103261LF

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bell & Gossett 103261LF Documents

Datasheet Catalog PartS & Accessories Installation Instructions

Overview

Details for 103261LF

1/40 HP, NBF-12U/LW Bronze Circulator Pump, Lead Free

Bell & Gossett NBF-12U/LW Circulator Pump 103261LF

B&G NBF-12U/LW in-line wet rotor circulation pumps are designed specifically for quiet operation in open (potable) water systems. These pumps have 100% lead-free bronze bodies. Residential or light commercial potable or heating applications.

Features

High starting torque provides years of trouble-free start-ups
Unique B&G DuraGlide Bearing System assures whisper-quiet, maintenance-free operation
Closed impeller design improves operating efficiency
Backed by B&Gs representatives and a great 3-year warranty

Specifications

Item Number	103261LF
Brand	Bell & Gossett
Amperage	0.48
Application	Heating
Connection Size	3/4"
Connection Type	Union
Family	CIRCULATOR PUMPS
Flow Range (GPM)	0-17
Head Range (ft.)	0-12
Hertz	60
Horse Power	1/40
HP	1/40
Material	Bronze
Max Flow (GPM)	17
Max Head (Ft)	12
Max Pressure (PSI)	150
Max Temp (F)	230°F
Phase	1
Pump Type	Bronze Pumps
Pump Type	Circulator Pumps
RPM	2800
Series	NBF Series Bronze Pumps
Type	Pump
Voltage	115v
