102231LF | 1/6 HP, HV AB Series HV Bronze Circulator Pump (115V, 1725 RPM) | Bell & Gossett

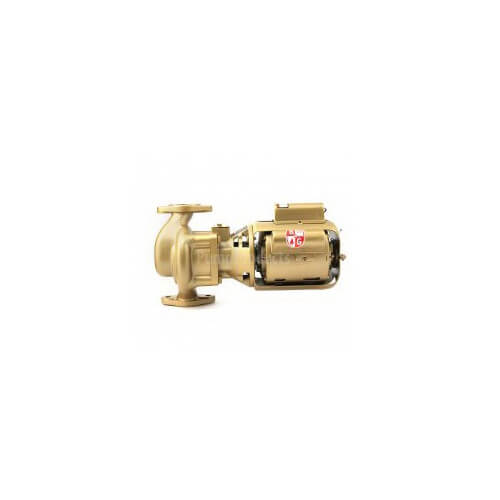

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 102231LF

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bell & Gossett 102231LF Documents

Datasheet Catalog PartS & Accessories Installation Instructions

Overview

Details for 102231LF

1/6 HP, HV AB Series HV Bronze Circulator Pump (115V, 1725 RPM)

This is the lead free model

Bell & Gossett HV 3-Piece Circulating Pump Without Flange, 40 gpm, 12 ft Head, 1/6 hp, 115 volt, 1.9 amp, 60 Hz, 1 Phase, 125 psi

Specifications

Item Number	102231LF
Brand	Bell & Gossett
Amperage	1.9
Application	Heating
Connection Size	1"
Family	CIRCULATOR PUMPS
Flow Rate (GPM)	40
Head Range (ft.)	0-12
Hertz	60
Horse Power	1/6
HP	1/6
Material	Bronze
Max Head (Ft)	12
Max Pressure (PSI)	125
Max Temp (F)	225°F
Phase	1
Pump Type	Bronze Pumps
RPM	1725
Series	HV Series Bronze Booster Pumps
SubType	Three Piece Bronze Booster Pumps
Type	Pump
Voltage	115v
