Overview

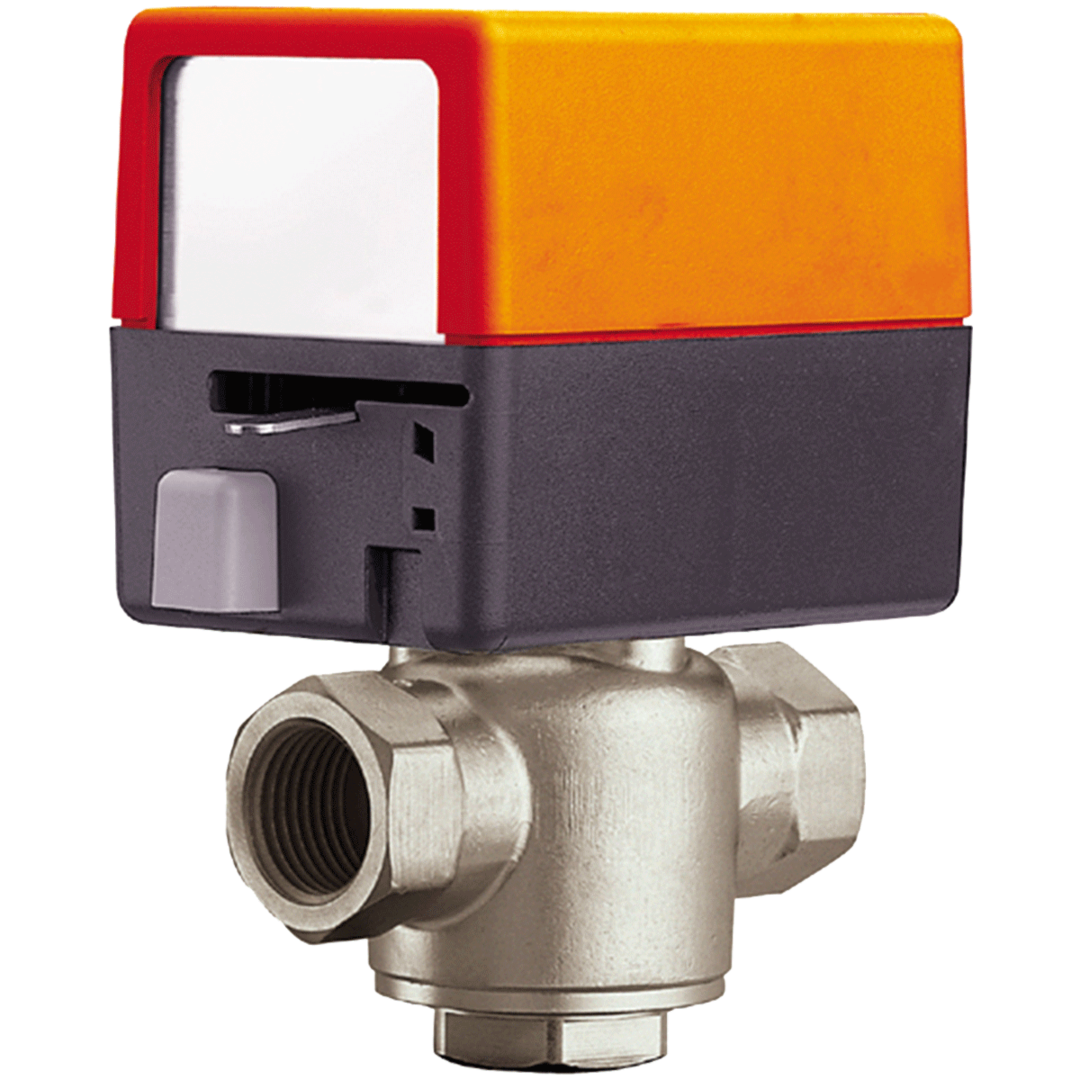

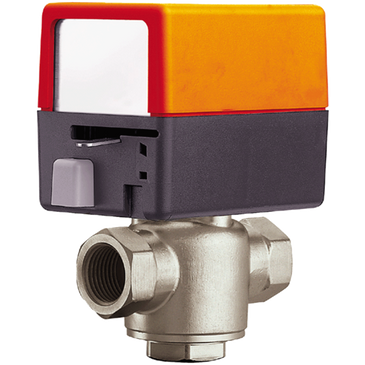

Details for ZONE320S-50+ZONE24NC
Zone Valve | 0.75" | 3 Way | 5 Cv | w/ Spg Rtn | 24V | On/Off
Zone Valve | 0.75" | 3 Way | 5 Cv | w/ Spg Rtn | 24V | On/Off
Application
This valve is typically used on fan coil units, baseboards or other hydronic applications where fail-safe operation or 2-wire control is required. This valve is suitable for use in a hydronic system with variable or constant fl ow. This valve is designed to fi t in compact areas where on/off or control is required using 24 VAC or 120 VAC.
Mode of Operation
Zone valves provide a convenient way to create individual zones or equipment isolation in a hydronic system. Utilizing one pump along with multiple zone valves, fl ow can be started, stopped, or diverted through the system to provide individual room or area comfort control and energy savings.
Product Features
Zone valve is designed to fi t in compact areas where on/off control is required using 24 VAC or 120 VAC.
Specifications
- Valve specifications
- Angle of Rotation
- 90
- Cv
- 5
- End Fitting
- Sweat
- Fluid
- Chilled or hot water up to 50% glycol
- Pattern
- 3-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 0.75" [20]
- Actuator specifications
- Actuator Type
- Spring return
- Control Type
- On/Off
- Degree of Protection
- IP20 NEMA 1
- Electrical Connection
- cable
- Manual Override
- Hand lever
- Power Consumption (Running)
- 6.5 W
- Running Time (Fail-safe)
- <5 s
- Voltage AC/DC
- AC 24 V
