Z2050Q-J+CQB24-3 | ZoneTight | 0.5" | 2 Way | 5.9 Cv | w/ Non-Spg | 24V | On/Off/Floating | Belimo

ZoneTight™ (QCV), 1/2", 2-way, Cv 5.9 |Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point

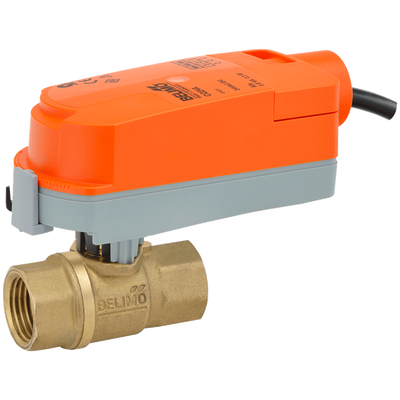

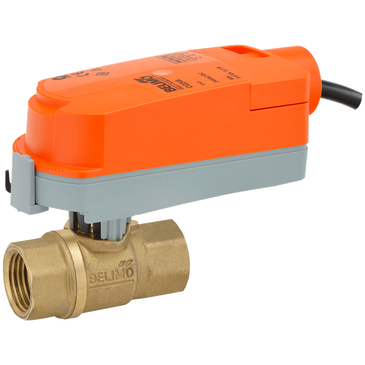

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to Z2050Q-J+CQB24-3

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Belimo Z2050Q-J+CQB24-3 Documents

Datasheet Installation Instructions More Info

Overview

Details for Z2050Q-J+CQB24-3

ZoneTight | 0.5" | 2 Way | 5.9 Cv | w/ Non-Spg | 24V | On/Off/Floating

Application

The QCV zone valves are suited for large commercial buildings where higher
close-off and the ability to change flow is desired. Common applications include
unit ventilators, fan coil units, VAV reheat coils, fin tube casing, radiant panels
and duct coils. The valve fits in space restricted areas and can be assembled
without the use of tools.

Specifications

Item Number	Z2050Q-J+CQB24-3
Brand	Belimo
Control Input	Floating
Control Valves Type	ZoneTight
Cv / GPM	5.9 Cv
Spring Return	Non-Spring Return
Valve Size	0.75" - 2 Way
Voltage	24V
