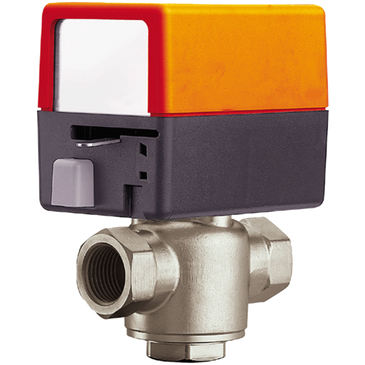

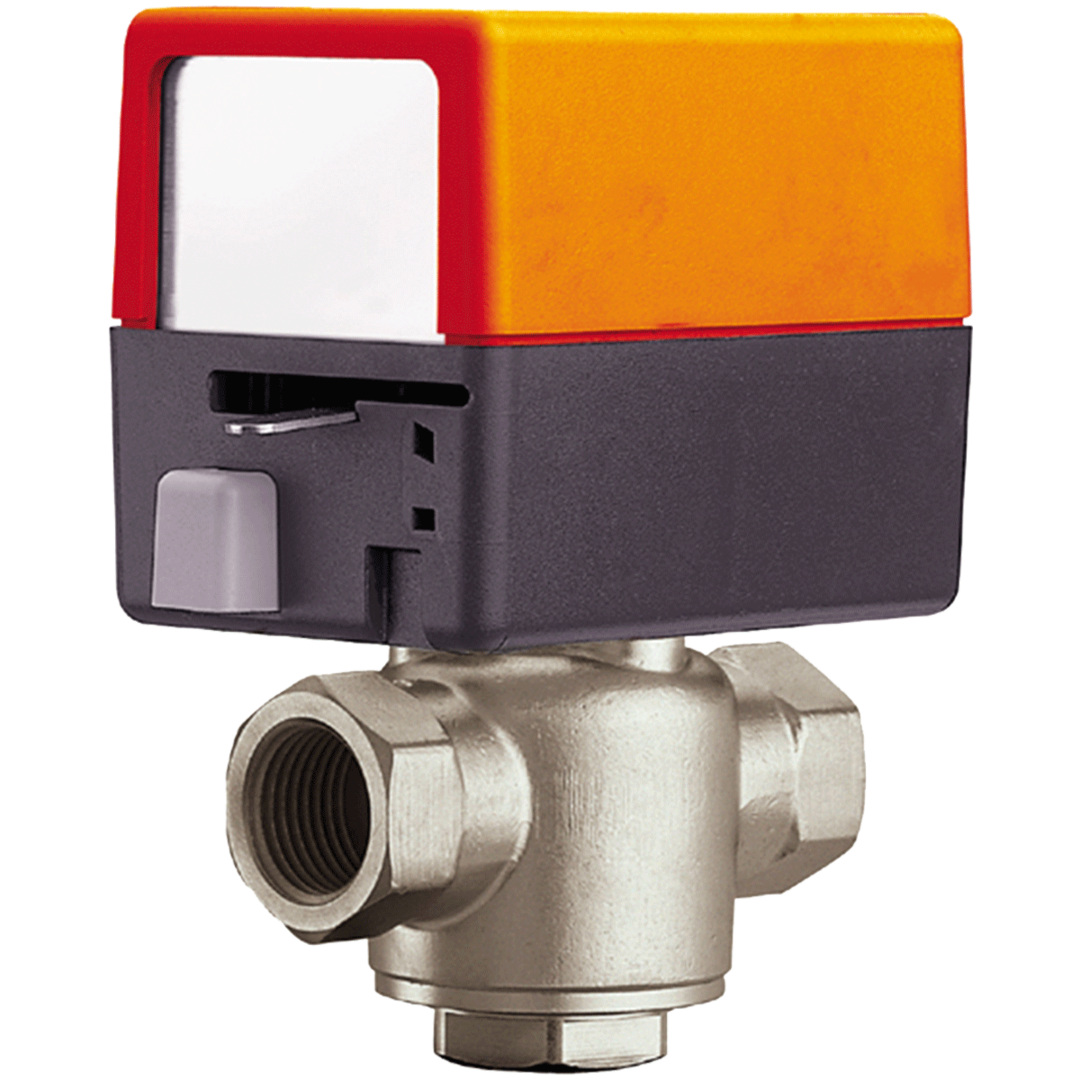

ZONE320N-35+ZONE24NC | Zone Valve | 0.75" | 3 Way | 3.5 Cv | w/ Spg Rtn | 24V | On/Off | Belimo

Zone Valve|Zone Valve (ZV), 3/4", 3-way, Cv 3.5 |Valve Actuator, Spring return, AC 24 V, On/Off

Belimo | ZONE320N-35+ZONE24NC
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to ZONE320N-35+ZONE24NC

Documents and manuals

Belimo ZONE320N-35+ZONE24NC Documents

Overview

Details for ZONE320N-35+ZONE24NC

Zone Valve | 0.75" | 3 Way | 3.5 Cv | w/ Spg Rtn | 24V | On/Off

Specifications

Valve specifications
Angle of Rotation
90
Cv
3.5
End Fitting
Internal thread
Fluid
Chilled or hot water up to 50% glycol
Pattern
3-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
0.75" [20]
Actuator specifications
Actuator Type
Spring return
Control Type
On/Off
Degree of Protection
IP20 NEMA 1
Electrical Connection
cable
Manual Override
Hand lever
Power Consumption (Running)
6.5 W
Running Time (Fail-safe)
<5 s
Voltage AC/DC
AC 24 V
