ZONE315S-10+ZONE120NC-S | Zone Valve | 0.5
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: BelimoSKU: ZONE315S-10+ZONE120NC-S

Web Price:

$179.10
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

ZONE315S-10+ZONE120NC-S | Zone Valve | 0.5" | 3 Way | 1 Cv | w/ Spg Rtn | 120V | On/Off | SW | Belimo

Zone Valve|Zone Valve (ZV), 1/2", 3-way, Cv 1 |Valve Actuator, Spring return, AC 120 V, On/Off, 1 x SPST

Belimo | ZONE315S-10+ZONE120NC-S

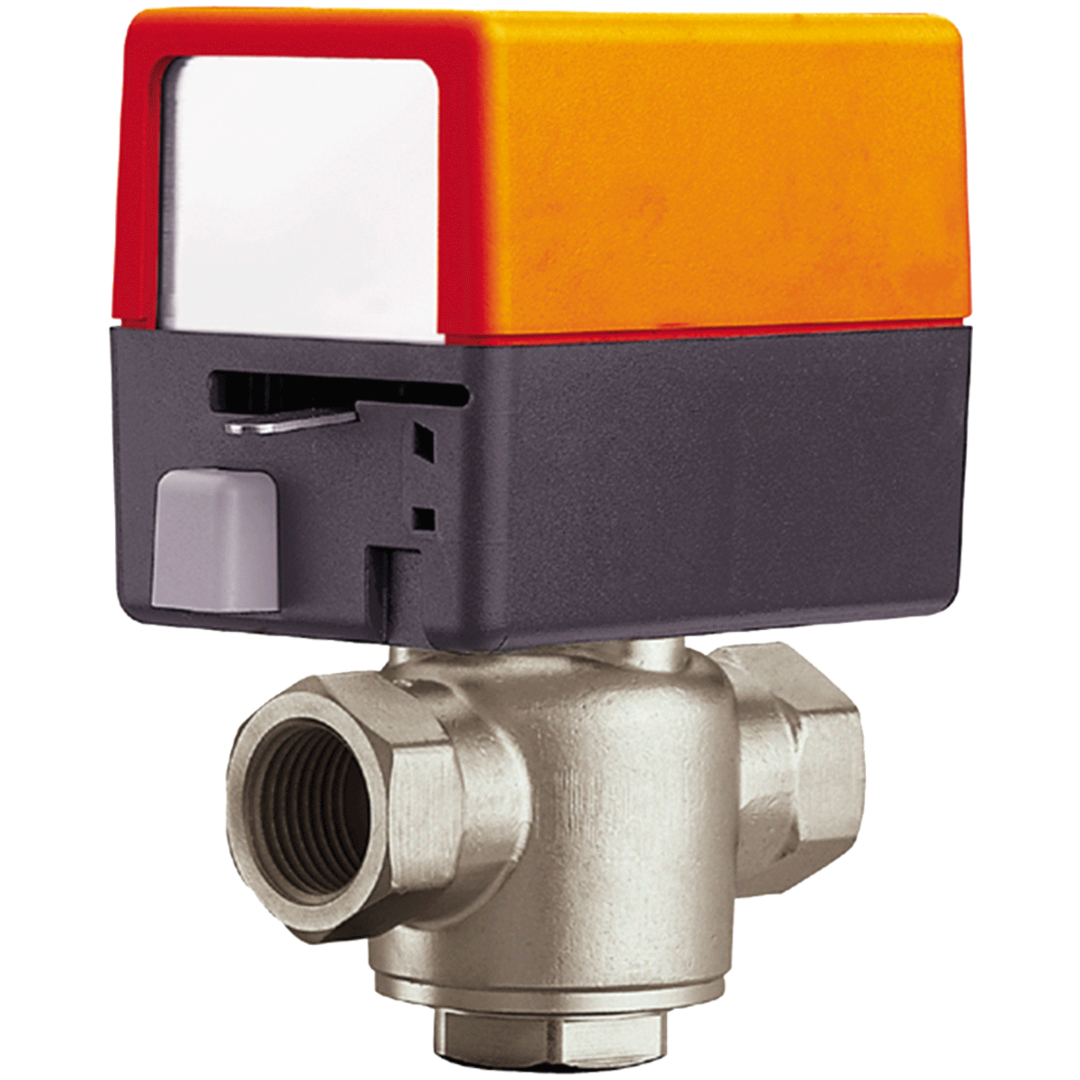

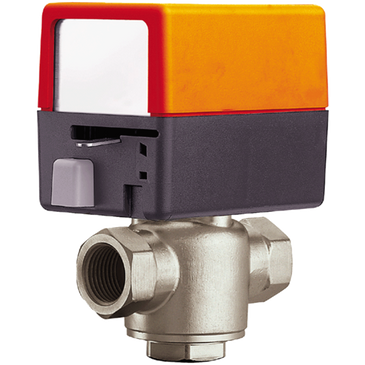

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to ZONE315S-10+ZONE120NC-S

Documents and manuals

Belimo ZONE315S-10+ZONE120NC-S Documents

Overview

Details for ZONE315S-10+ZONE120NC-S

Zone Valve | 0.5" | 3 Way | 1 Cv | w/ Spg Rtn | 120V | On/Off | SW

Specifications

Valve specifications
Angle of Rotation
90
Cv
End Fitting
Sweat
Fluid
Chilled or hot water up to 50% glycol
Pattern
3-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
0.5" [15]
Actuator specifications
Actuator Type
Spring return
Auxiliary Switches
1 x SPST
Control Type
On/Off
Degree of Protection
IP20 NEMA 1
Electrical Connection
cable
Manual Override
Hand lever
Power Consumption (Running)
6.5 W
Running Time (Fail-safe)
<5 s
Voltage AC/DC
AC 120 V
