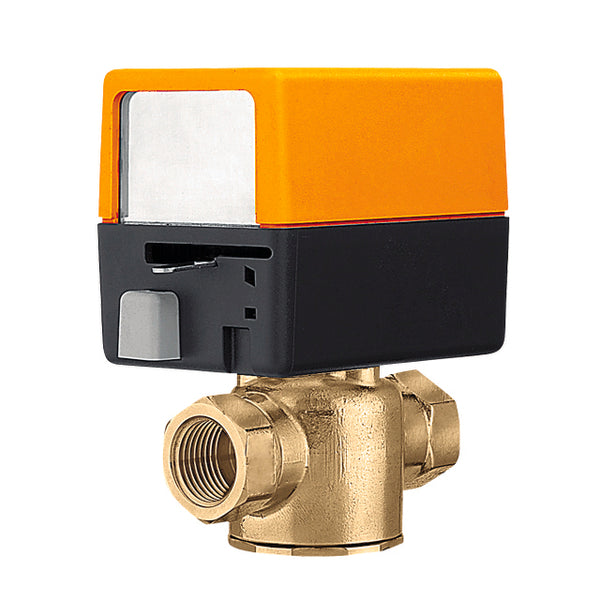

ZONE215N-25+ZONE24NO-S | Zone Valve | 0.5" | 2 Way | 2.5 Cv | w/ Spg Rtn | 24V | On/Off | SW | Belimo
Zone Valve|Zone Valve (ZV), 1/2", 2-way, Cv 2.5 |Valve Actuator, Spring return, AC 24 V, On/Off, 1 x SPST
Documents and manuals
Belimo ZONE215N-25+ZONE24NO-S Documents
Overview
Details for ZONE215N-25+ZONE24NO-S
Zone Valve | 0.5" | 2 Way | 2.5 Cv | w/ Spg Rtn | 24V | On/Off | SW
Zone Valve | 0.5" | 2 Way | 2.5 Cv | w/ Spg Rtn | 24V | On/Off | SW
Application
This valve is typically used on fan coil units, baseboards or other hydronic applications where fail safe operation or 2-wire control is required. This valve is suitable for use in a hydronic system with variable or constant flow. This valve is designed to fit in compact areas where on/off control is required using 24 VAC, 120 VAC or 230 VAC. Note: For heating applications, it is important to cycle the N/O valves perioically during the off season or power them down to reduce the chance of the valve sticking in the up coming heating season.
Specifications
- Valve specifications
- Angle of Rotation
- 90
- Cv
- 2.5
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 50% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 0.5" [15]
- Actuator specifications
- Actuator Type
- Spring return
- Auxiliary Switches
- 1 x SPST
- Control Type
- On/Off
- Degree of Protection
- IP20 NEMA 1
- Electrical Connection
- cable
- Power Consumption (Running)
- 6.5 W
- Running Time (Fail-safe)
- <5 s
- Voltage AC/DC
- AC 24 V
