Z3075Q-J+CQKB24-RR | ZoneTight | 0.75" | 3 Way | 5.9 Cv | w/ Electronic FS | 24V | On/Off | Belimo
ZoneTight™ (QCV), 3/4", 3-way, Cv 4.6 |Valve Actuator, Electronic fail-safe, AC/DC 24 V, On/Off, Normally Closed, Fail-safe position Closed

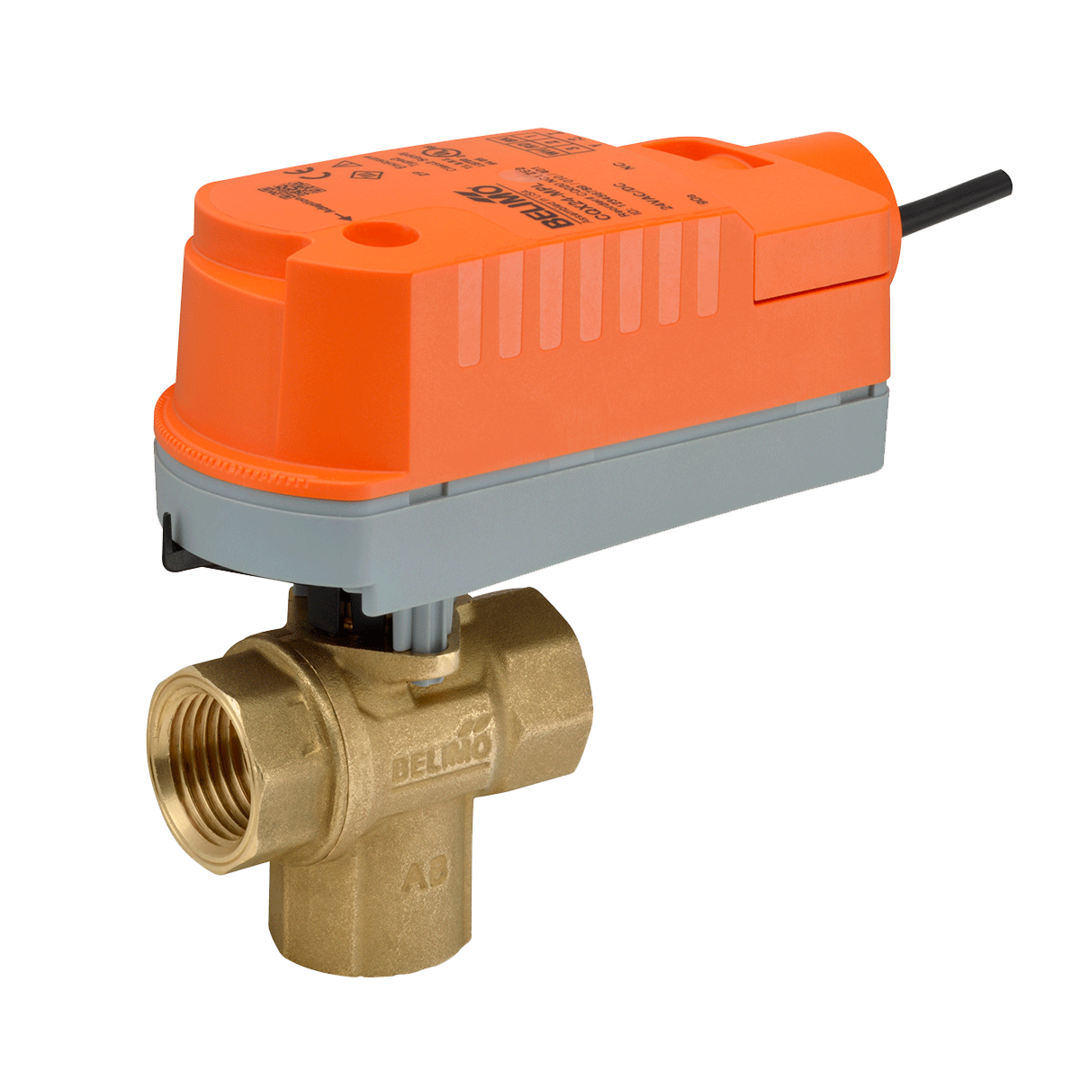

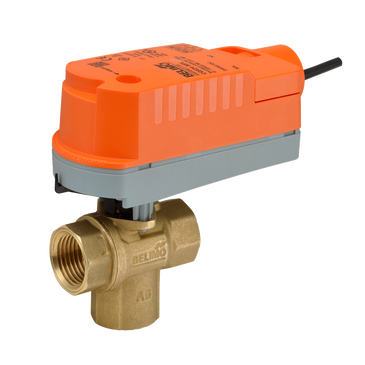

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to Z3075Q-J+CQKB24-RR
Documents and manuals
Belimo Z3075Q-J+CQKB24-RR Documents
Overview
Details for Z3075Q-J+CQKB24-RR
ZoneTight | 0.75" | 3 Way | 5.9 Cv | w/ Electronic FS | 24V | On/Off
Application
The QCV zone valves are suited for large commercial buildings where higher close-off and the ability to change flow is desired. Common applications include unit ventilators, fan coil units, VAV reheat coils, fin tube casing, radiant panels and duct coils. The valve fits in space restricted areas and can be assembled without the use of tools.
Specifications
- Valve specifications
- Angle of Rotation
- 90
- Cv
- 4.6
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 3-way
- Pressure Independent
- NO
- Trim
- Chrome plated brass
- Valve Size
- 0.75" [20]
- Actuator specifications
- Actuator Type
- Electrical fail-safe
- Control Type
- On/Off
- Degree of Protection
- IP40 NEMA 2
- Electrical Connection
- cable
- Power Consumption (Holding)
- 0.5 W
- Power Consumption (Running)
- 2.5 W
- Running Time (Fail-safe)
- <60 s
- Running Time (Motor)
- 75 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
