Z2075QS-K+CQKB24-S-RR | ZoneTight | 0.75" | 2 Way | 9.8 Cv | Sweat | w/ Electronic Fail-Safe | 24V | On/Off | SW | Belimo
ZoneTight™ (QCV), 3/4", 2-way, Cv 9.8 |Valve Actuator, Electronic fail-safe, AC/DC 24 V, On/Off, 1 x SPST, Normally Closed, Fail-safe position Closed

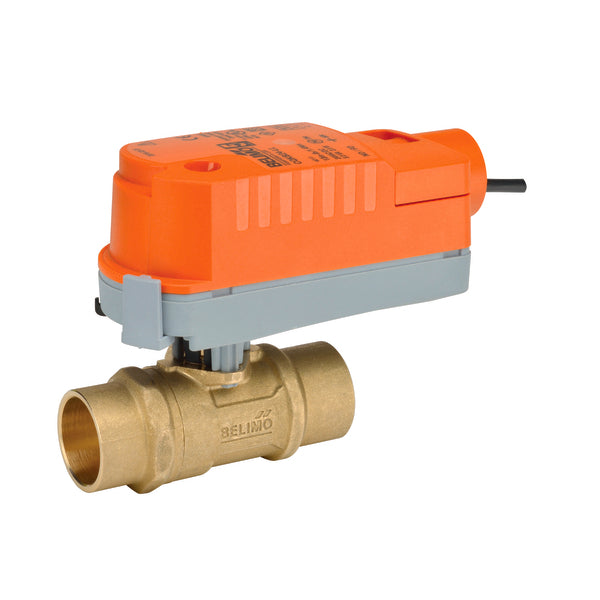

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to Z2075QS-K+CQKB24-S-RR
Documents and manuals
Belimo Z2075QS-K+CQKB24-S-RR Documents
Overview
Details for Z2075QS-K+CQKB24-S-RR
ZoneTight | 0.75" | 2 Way | 9.8 Cv | Sweat | w/ Electronic Fail-Safe | 24V | On/Off | SW
The PIQCV zone valves with its pressure independent technology are suited for large commercial buildings where higher close-off and dynamic balancing is required. Common applications include unit ventilators, fan coil units, VAV reheat coils, fin tube casing, radiant panels and duct coils. The valve fits in space restricted areas and can be assembled without the use of tools.Specifications
- Valve specifications
- Angle of Rotation
- 90
- Controllable Flow Range
- 75B0
- Cv
- 9.8
- End Fitting
- Sweat
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Chrome plated brass
- Valve Size
- 0.75" [20]
- Actuator specifications
- Actuator Type
- Electrical fail-safe
- Auxiliary Switches
- 1 x SPST
- Control Type
- On/Off
- Degree of Protection
- IP40 NEMA 2
- Electrical Connection
- cable
- Power Consumption (Holding)
- 0.5 W
- Power Consumption (Running)
- 2.5 W
- Running Time (Fail-safe)
- <60 s
- Running Time (Motor)
- 75 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
