Z2075Q-K+CQB24-3 | ZoneTight | 0.75" | 2 Way | 9.8 Cv | w/ Non-Spg | 24V | On/Off/Floating | Belimo

ZoneTight™ (QCV), 3/4", 2-way, Cv 9.8 |Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point

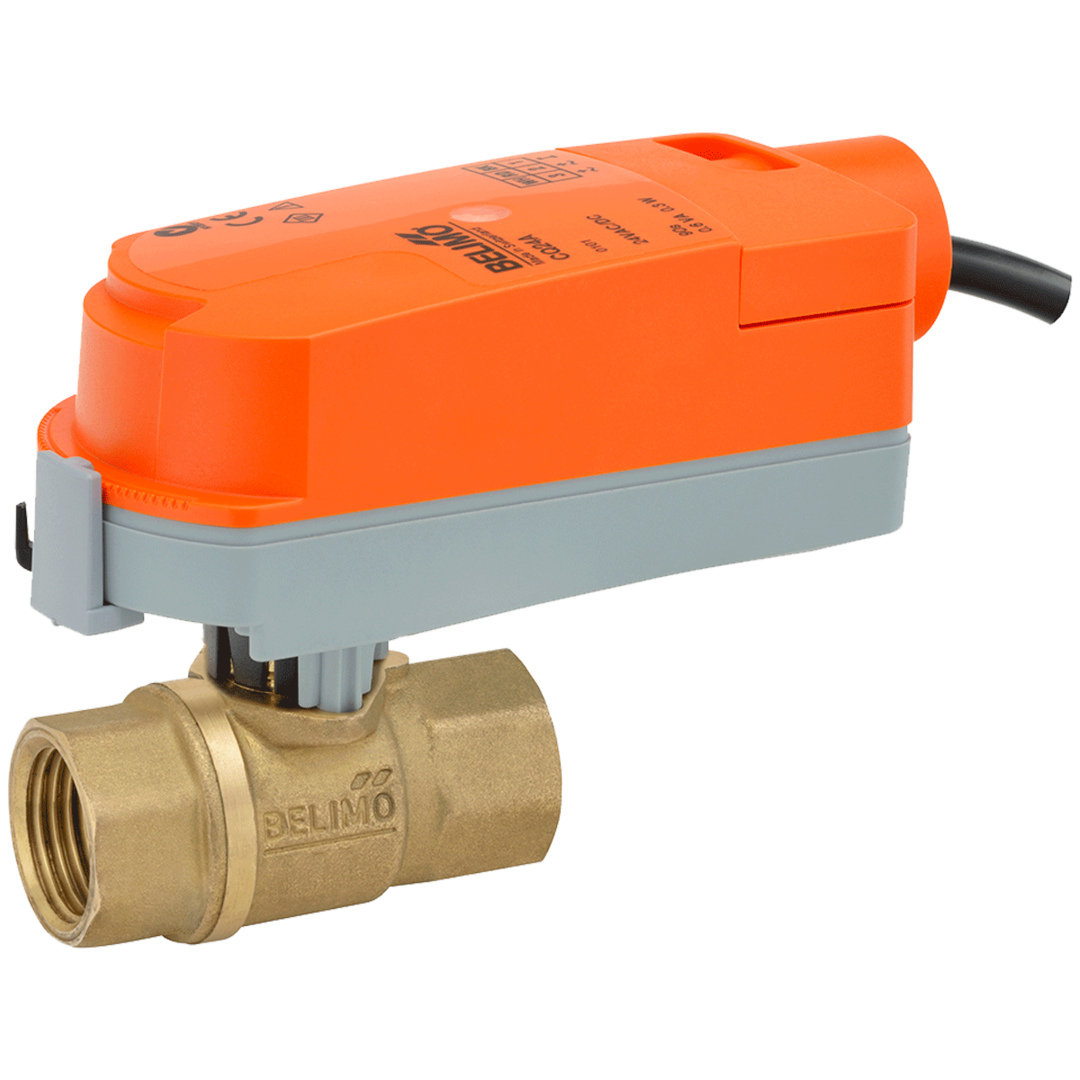

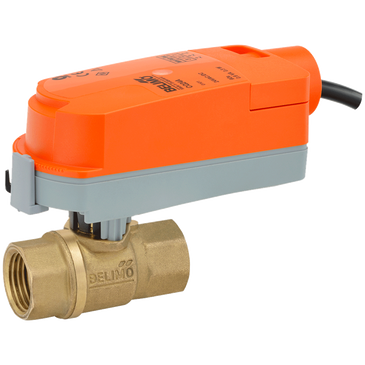

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to Z2075Q-K+CQB24-3

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Belimo Z2075Q-K+CQB24-3 Documents

Datasheet Installation Instructions More Info

Overview

Details for Z2075Q-K+CQB24-3

ZoneTight | 0.75" | 2 Way | 9.8 Cv | w/ Non-Spg | 24V | On/Off/Floating

The PIQCV zone valves with its pressure independent technology are suited for large commercial buildings where higher close-off and dynamic balancing is required. Common applications include unit ventilators, fan coil units, VAV reheat coils, fin tube casing, radiant panels and duct coils. The valve fits in space restricted areas and can be assembled without the use of tools.

Specifications

Item Number	Z2075Q-K+CQB24-3
Brand	Belimo
Control Input	Floating
Control Valves Type	ZoneTight
Cv / GPM	9.8 Cv
Spring Return	Non-Spring Return
Valve Size	0.75" - 2 Way
Voltage	24V
