Z2050QPT-D+CQB24-3 | ZoneTight | 0.5" | 2 Way | 1.9 GPM | w/ Non-Spg | 24V | On/Off/Floating | Belimo

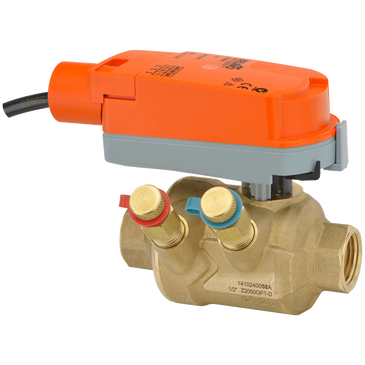

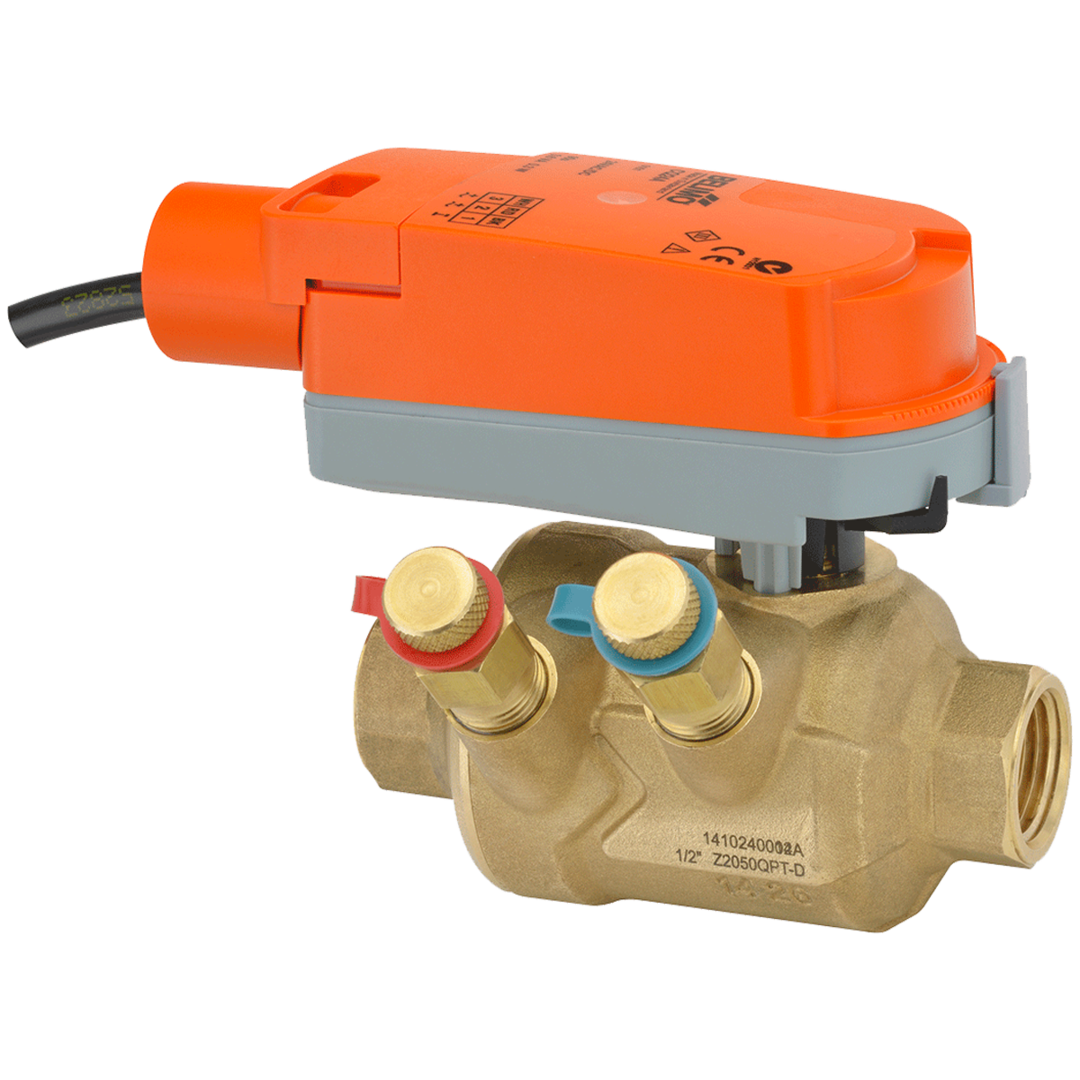

ZoneTight™ (PIQCV), 1/2", 2-way, GPM 2|Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point

Belimo | Z2050QPT-D+CQB24-3
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to Z2050QPT-D+CQB24-3
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Belimo Z2050QPT-D+CQB24-3 Documents

Datasheet Installation Instructions More Info

Overview

Details for Z2050QPT-D+CQB24-3

ZoneTight | 0.5" | 2 Way | 1.9 GPM | w/ Non-Spg | 24V | On/Off/Floating

Application

The PIQCV zone valves with its pressure independent technology are suited for large commercial buildings where higher close-off and dynamic balancing is required. Common applications include unit ventilators, fan coil units, VAV reheat coils, fin tube casing, radiant panels and duct coils. The valve fits in space restricted areas and can be assembled without the use of tools.


Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
End Fitting
Internal thread
Flow
2
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
PI-Technology
Mechanical
Pressure Independent
YES
Trim
Stainless steel
Valve Size
0.5" [15]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
Floating/3-point
Degree of Protection
IP40 NEMA 2
Electrical Connection
cable
Power Consumption (Holding)
0.2 W
Power Consumption (Running)
0.3 W
Running Time (Motor)
75 s / 90B0
Voltage AC/DC
AC/DC 24 V
