WGVL+EVB24-3 | WGVL w/ Non-Spg | 562 lbf | 24V | Floating Point | Belimo
Retrofit valve linkageFor Warren Globe Valve with AVK/EV/RV Series Actuators|Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point
Overview
Details for WGVL+EVB24-3
WGVL w/ Non-Spg | 562 lbf | 24V | Floating Point
Application

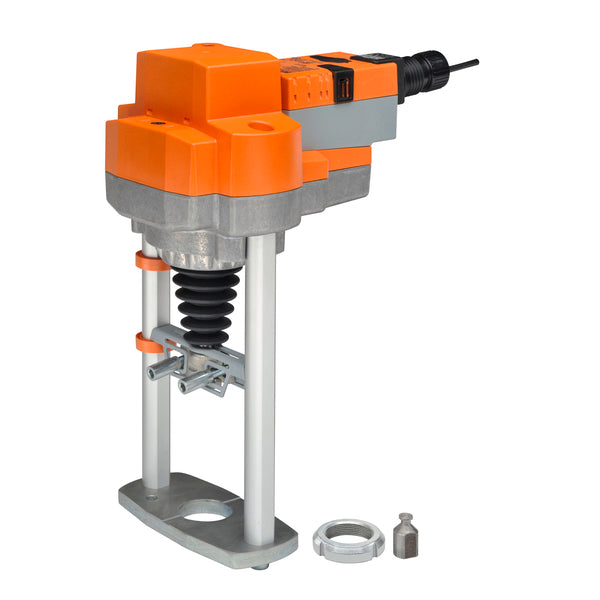

The WGVL retrofit kit is designed to easily attach AVK, EV and RV series actuators to select Warren globe valves. Its casted base and lower lock nut allow the WGVL to be mounted on 2-1/2” to 6” two-way or three-way valves in both normally open and normally closed configurations.
Operation
The WGVL linkage with actuator will provide 50 mm of linear travel to accommodate a wide range of valve sizes.
Default/Configuration
The default set up for a WGVL linkage will be factory installed along with an AVK or EV, RV series actuator. Included in the kit will be all the necessary hardware to facilitate mounting to the Warren valve.
Specifications
- Actuator Type
- Non fail-safe
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Fluid
- Chilled or hot water and steam
- Force
- 2500 N [560 lbf]
- Power Consumption (Holding)
- 0.5 W
- Power Consumption (Running)
- 3.5 W
- Protection category
- IP54
- Running Time (Motor)
- 90 s /
- Stroke
- 2" [50 mm]
- Voltage AC/DC
- AC/DC 24 V
