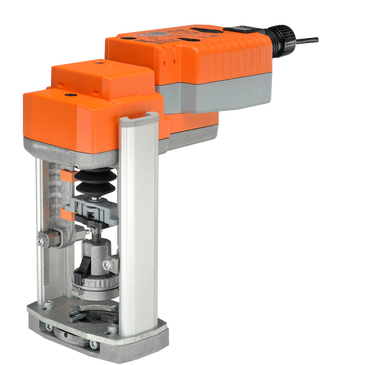

UGVL+SVKX120-3 | UGVL w/ Electronic FS | 337 lbf | 120V | Floating Point | Belimo
Retrofit valve linkageFor Universal Globe Valve with LV and SV Series Actuators|Valve Actuator, Electronic fail-safe, AC 100...240 V, On/Off, Floating point
Overview
Details for UGVL+SVKX120-3
UGVL w/ Electronic FS | 337 lbf | 120V | Floating Point
Application
The UGVL retrofit kit is designed to easily attach LV and SV series actuators to select globe valves. Its unique adjustable design allows the UGVL to be mounted on ½” to 2” two-way or three-way valves in both normally open and normally closed configurations.
Operation
The UGVL linkage with actuator will provide 20 mm of linear travel to accommodate a wide range of valves. Default/Configuration The default set up for a UGVL linkage will be factory installed along with a LV or SV series actuator. Included in the kit will be all the necessary hardware to facilitate mounting to the valve.
Specifications
- Actuator Type
- Electrical fail-safe
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Fluid
- Chilled or hot water and steam
- Force
- 1500 N [340 lbf]
- Power Consumption (Holding)
- 2 W
- Power Consumption (Running)
- 3 W
- Protection category
- IP54
- Running Time (Fail-safe)
- <35 s
- Running Time (Motor)
- 90 s /
- Running Time range (Motor)
- 90 or 150 s
- Stroke
- 0.6" [15 mm] LV 3/4" [20 mm] SV
- Voltage AC/DC
- AC 100...240 V
