PRXUP-MFT-T-200 | Valve Actuator | Non-Spring | 24-240V | MFT | for 8" BFV | Belimo

Configurable Valve Actuator, Non fail-safe, AC 24...240 V / DC 24...125 V, 2...10 V, 2 x SPDT, terminals, BACnet MS/TP Modbus RTU MP-Bus, MFT/programmable

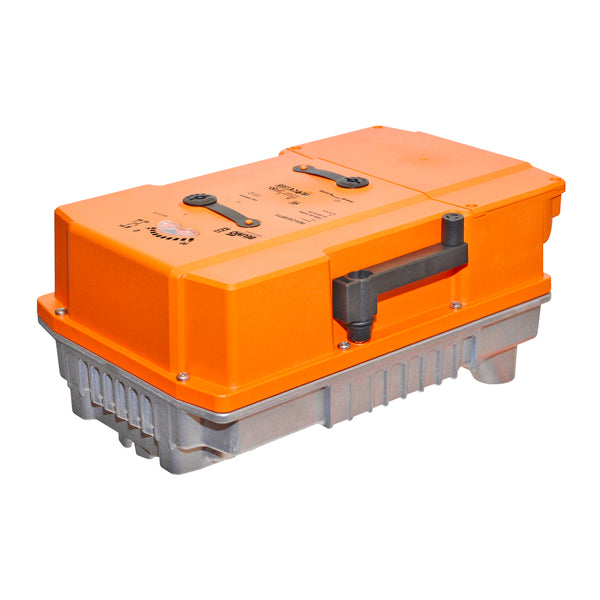

Belimo | PRXUP-MFT-T-200
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to PRXUP-MFT-T-200
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Belimo PRXUP-MFT-T-200 Documents

Datasheet More Info

Overview

Details for PRXUP-MFT-T-200

Valve Actuator | Non-Spring | 24-240V | MFT | for 8" BFV

PR Series valve actuators are designed with an integrated linkage and visual position indicators. For outdoor applications, the installed valve must be mounted with the actuator at or above horizontal. For indoor applications the actuator can be in any location including directly under the valve.

Specifications

Valve specifications
Angle of Rotation
90
ANSI Class
Consistent with 125
Controllable Flow Range
90B0 rotation
Cv
3136
End Connection
Lug types
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Valve Size
8" [200]
Actuator specifications
Actuator Type
Non fail-safe
Auxiliary Switches
2 x SPDT
Control Type
MFT/Programmable
Degree of Protection
IP66/67 NEMA 4X UL Enclosure Type 4X
Electrical Connection
terminals
Manual Override
7 mm hex crank supplied
Power Consumption (Holding)
6 W
Power Consumption (Running)
20 W
Running Time (Motor)
35 s / 90B0
Torque
160 Nm
Voltage AC/DC
AC 24...240 V / DC 24...125 V
