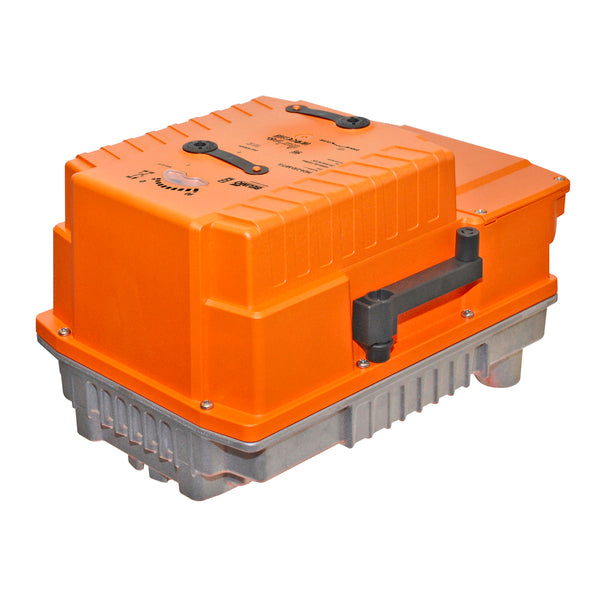

PKRXUP-MFT-T-200 | Valve Actuator | Electronic Fail-Safe | Universal Power Supply | MFT | for 8" BFV | Belimo
Configurable Valve Actuator, Electronic fail-safe, AC 24...240 V / DC 24...125 V, 2...10 V, 2 x SPDT, terminals, BACnet MS/TP Modbus RTU MP-Bus, MFT/programmable
Overview
Details for PKRXUP-MFT-T-200
Valve Actuator | Electronic Fail-Safe | Universal Power Supply | MFT | for 8" BFV
Applications
PKRXUP-MFT-T-200 is a Belimo’s valve actuator from the PR Series that sets new standards for flow control applications in HVAC (heating, ventilation, and air conditioning) systems. The actuator is designed for indoor (must be placed under the valve) and outdoor (directly at or above the horizontal) applications.
Configuration
By default, PR series (PKR-MFT) actuators are set to a 2-10 VDC with a 4-20 mA operating range during manufacturing. The actuator supports NFC programming and can be easily reprogrammed from a smartphone. In addition, you can order different operating parameters or adjust them via the handheld ZTH US or Belimo app.
Operation
Belimo’s PR series actuators are ideal for industrial and commercial applications. This model provides:
- Adjustable operating range and running time (30-120 seconds)
- Easily configurable parameters via a Belimo app
- 90 degrees of rotation and visual indicator positions
- Brushless DC motor with low power consumption levels
- Electronic fail-safe to protect equipment against overload
- Prevents condensation problems due to built-in thermostat and smart heather
- Two auxiliary switches (10-degree switch and an adjustable one)
- Works from a universal power supply (24-40 VAC or 24-125 VDC working range)
- Easy installation
- Durable and maintenance-free
You can learn more about the product’s specifications and features in the instruction manual.
Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- Consistent with 125
- Controllable Flow Range
- 90B0 rotation
- Cv
- 3136
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Valve Size
- 8" [200]
- Actuator specifications
- Actuator Type
- Electrical fail-safe
- Auxiliary Switches
- 2 x SPDT
- Control Type
- MFT/Programmable
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- terminals
- Manual Override
- 7 mm hex crank supplied
- Power Consumption (Holding)
- 9 W
- Power Consumption (Running)
- 52 W
- Running Time (Fail-safe)
- <30 s
- Running Time (Motor)
- 35 s / 90B0
- Voltage AC/DC
- AC 24...240 V / DC 24...125 V
