P6400SU-317+GKRX24-EP2 | Electronic Pressure Independent Valve (EPIV), 4", 2-way, ANSI Class 125, 317 | Configurable Valve Actuator, Electronic fail-safe, AC/DC 24V, 2-10V | Belimo

Configurable Electr. 2-way PI-CCV EPIV fail-safe, AC/DC 24 V, DN 4"[100], flange, ANSI Class 125, GPM 317|Electronic Pressure Independent Valve (EPIV), 4", 2-way, ANSI Class 125, GPM 317|Configurable Valve Actuator, Electronic fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

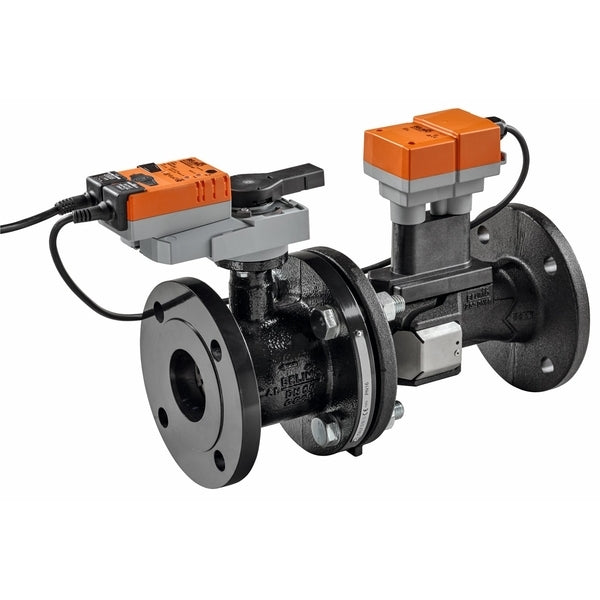

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to P6400SU-317+GKRX24-EP2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Belimo P6400SU-317+GKRX24-EP2 Documents

Datasheet Installation Instructions More Info

Overview

Details for P6400SU-317+GKRX24-EP2

Electronic Pressure Independent Valve (EPIV), 4", 2-way, ANSI Class 125, 317 | Configurable Valve Actuator, Electronic fail-safe, AC/DC 24V, 2-10V

Specifications

Valve specifications
Angle of Rotation: 90
ANSI Class: 125
End Fitting: Flange
Flow: 317
Fluid: Chilled or hot water up to 60% glycol max (open loop/steam not allowed)
Pattern: 2-way
PI-Technology: Electronic
Pressure Independent: YES
Sensor Technology: Ultrasonic with glycol and temperature compensation
Trim: Stainless steel
Valve Size: 4" [100]
Actuator specifications
Actuator Type: Electrical fail-safe
Control Type: MFT/Programmable
Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection: cable
Manual Override: External push button
Power Consumption (Running): 11 W
Running Time (Fail-safe): <35 s
Running Time (Motor): 90 s
Torque: 360 in-lb [40 Nm]
Voltage AC/DC: AC/DC 24 V
