P2100SU-182+LRX24-EP2-MOD | Electronic Pressure Independent Valve (EPIV), 1", 2-way, 18.2 | Configurable Valve Actuator, Non fail-safe, AC/DC 24V, 2-10V | Belimo (OBSOLETE)

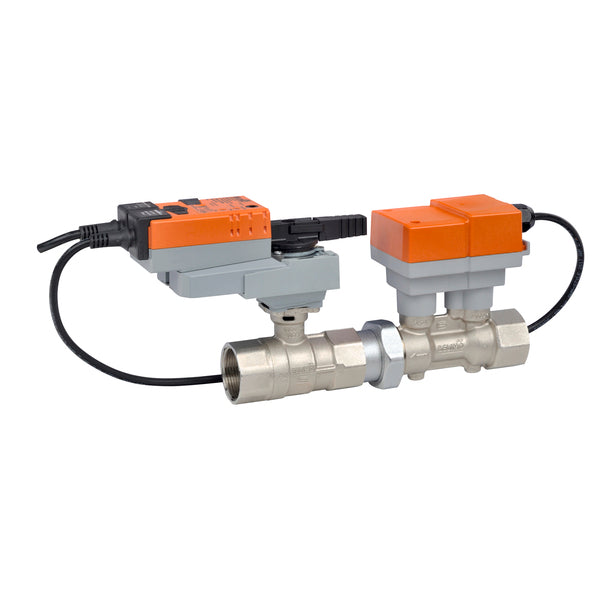

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to P2100SU-182+LRX24-EP2-MOD
Documents and manuals
Belimo P2100SU-182+LRX24-EP2-MOD Documents
Overview
Details for P2100SU-182+LRX24-EP2-MOD
DISCONTINUED AND REPLACED WITH EP100+LRX-E
Electronic Pressure Independent Valve (EPIV), 1", 2-way, 18.2 | Configurable Valve Actuator, Non fail-safe, AC/DC 24V, 2-10V
Specifications
- Valve specifications
- Angle of Rotation
- 90
- End Fitting
- Internal thread
- Flow
- 18.2
- Fluid
- Chilled or hot water up to 60% glycol max (open loop/steam not allowed)
- Pattern
- 2-way
- PI-Technology
- Electronic
- Pressure Independent
- YES
- Sensor Technology
- Ultrasonic with glycol and temperature compensation
- Trim
- Stainless steel
- Valve Size
- 1" [25]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- BACnet MS/TP
- Modbus RTU
- MP-Bus
- Hybrid (communicative/analog)
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Running)
- 3.5 W
- Running Time (Motor)
- 90 s
- Torque
- 45 in-lb [5 Nm]
- Voltage AC/DC
- AC/DC 24 V
Alternatives
