NRX24-3-T N4 | Valve Actuator | Non-Spg | 24V | On/Off/Floating Point | NEMA 4 | Belimo

Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point, NEMA 4X, terminals

Belimo | NRX24-3-T N4

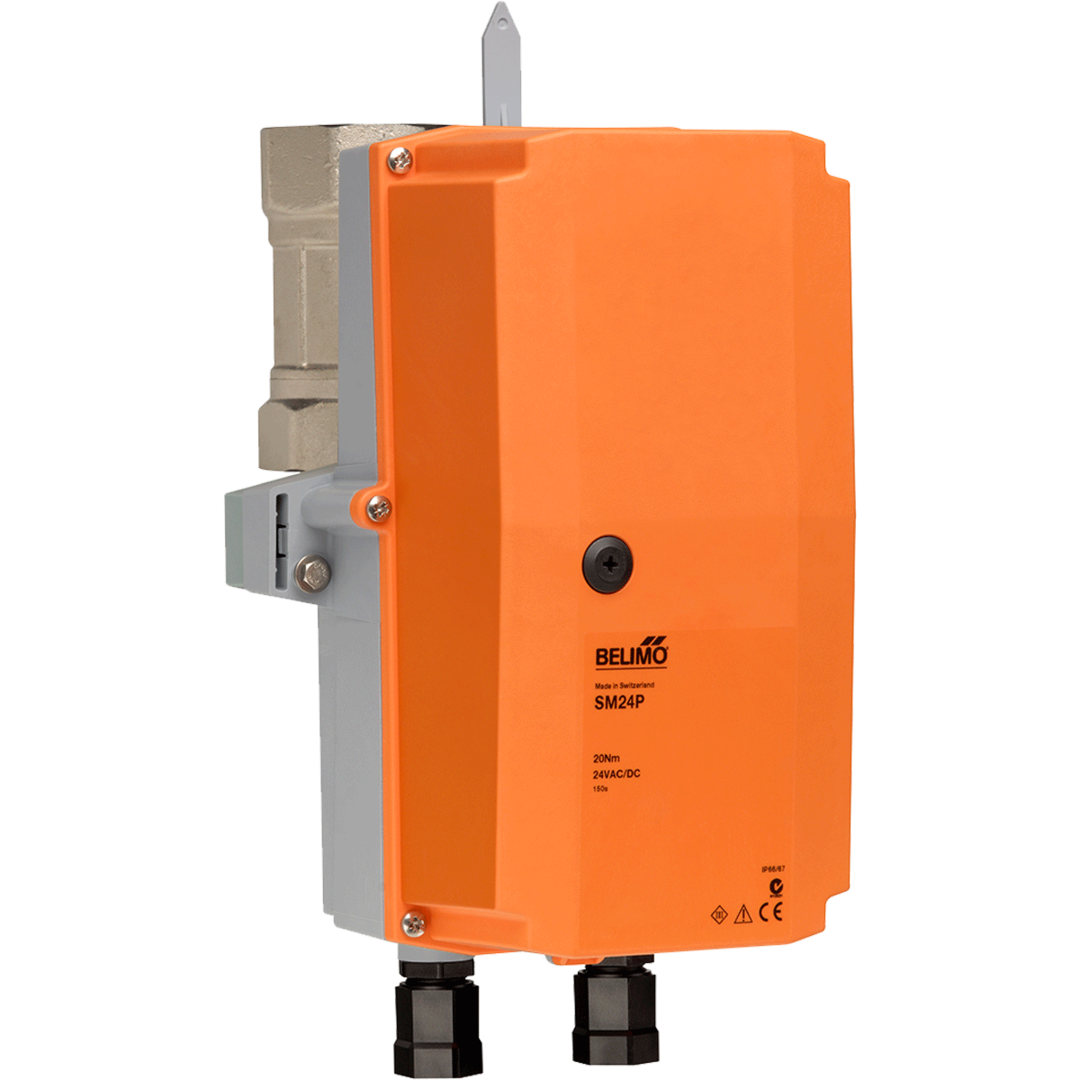

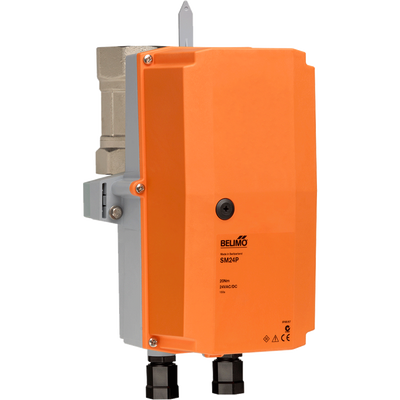

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to NRX24-3-T N4

Documents and manuals

Belimo NRX24-3-T N4 Documents

Overview

Details for NRX24-3-T N4

Valve Actuator | Non-Spg | 24V | On/Off/Floating Point | NEMA 4

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
0.3
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
0.5" [15]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
Floating/3-point
Degree of Protection
IP66/67 NEMA 4X UL Enclosure Type 4X
Electrical Connection
terminals
Manual Override
External push button
Power Consumption (Holding)
0.2 W
Power Consumption (Running)
2 W
Running Time (Motor)
90 s / 90B0
Voltage AC/DC
AC/DC 24 V
