NMX24-SR-T | Damper Actuator | 90 in-lb | Non-Spg Rtn | 24V | Modulating | Belimo

Configurable Damper Actuator, 90 in-lb [10 Nm], Non fail-safe, AC/DC 24 V, 2...10 V, terminals

Belimo | NMX24-SR-T

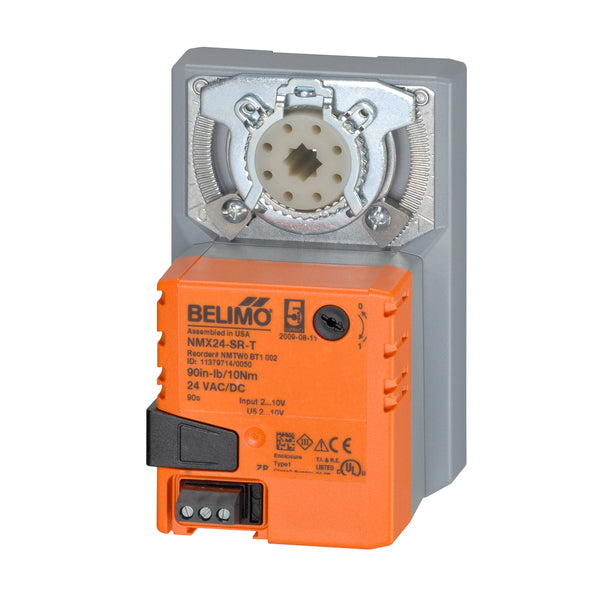

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to NMX24-SR-T

Documents and manuals

Belimo NMX24-SR-T Documents

Overview

Details for NMX24-SR-T

Damper Actuator | 90 in-lb | Non-Spg Rtn | 24V | Modulating

Application

For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft up to 1.05" in diameter by means of its universal clamp, 1/2” self centered default. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. The actuator operates in response to a 2 to 10 VDC, or with the addition of a 500 Ω resistor, a 4 to 20 mA control input from an electronic controller or positioner. A 2 to 10 VDC feedback signal is provided for position indication or master-slave applications.

Operation

The actuator is not provided with and does not require any limit switches, but is electronically protected against overload. The anti-rotation strap supplied with the actuator will prevent lateral movement. The NMB(X) series provides 95° of rotation and a visual indicator indicates position of the actuator. When reaching the damper or actuator end position, the actuator automatically stops. The gears can be manually disengaged with a button on the actuator cover. The NMB(X)24-SR… actuators use a sensorless brushless DC motor, which is controlled by an Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the actuator’s rotation and provides a digital rotation sensing (DRS) function to prevent damage to the actuator in a stall condition.Power consumption is reduced in holding mode. Add-on auxiliary switches or feedback potentiometers are easily fastened directly onto the actuator body for signaling and switching functions.


Specifications

Actuator Type
Non fail-safe
Angle of Rotation
315
Control Type
DC 2...10 V
Degree of Protection
852
Electrical Connection
terminals
Power Consumption (Holding)
0.4 W
Power Consumption (Running)
2.5 W
Protection category
IP20
Running Time (Motor)
95 s / 90B0
Torque
90 in-lb [10 Nm]
Voltage AC/DC
AC/DC 24 V
