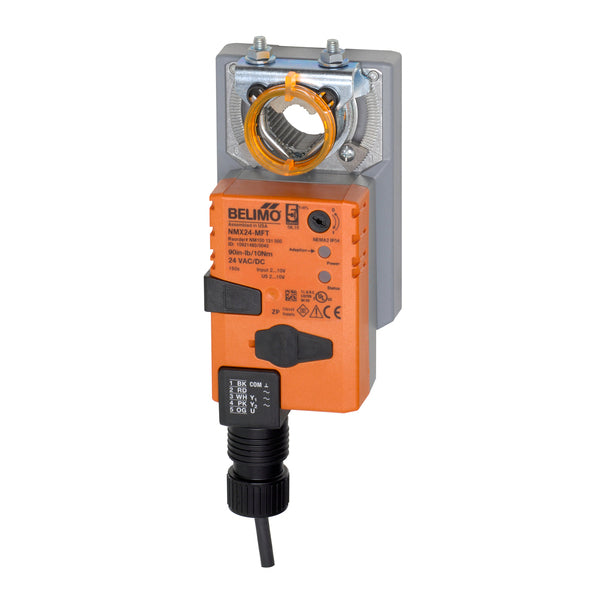

NMX24-MFT | Damper Actuator | 90 in-lb | Non-Spg Rtn | 24V | Modulating | Belimo

[Part# NMX24-MFT is the same as NMX24MFT]

Brand: BelimoSKU: NMX24-MFT

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NMX24-MFT

Overview & Specifications Reviews Parts & Accessories

Overview Details for NMX24-MFT

The Belimo NMX24-MFT is a non-spring return (NSR) actuator designed for modulating control of dampers in HVAC systems. This actuator offers precise control of airflow by accepting both floating point (analog) and on/off (digital) control signals.

The NMX24-MFT operates on 24V AC/DC and provides 90 in-lb of torque, suitable for various damper sizes. Its non-spring return design maintains the damper's last commanded position in the event of a power failure, ensuring consistent airflow until power is restored. The actuator's compact design and simple installation make it a versatile solution for various HVAC applications.

The MFT designation indicates its ability to accept both modulating (floating point) and on/off control signals. This actuator features an integrated potentiometer for feedback, allowing for precise position monitoring.

Specifications

Item Number	NMX24-MFT
Brand	Belimo
Control Input	Modulating
Spring Return	Non-Spring Return
Actuator Type	Non-Spring Return (NSR) Damper Actuator
Control Input	Floating Point (analog) and On/Off (digital)
Voltage	24VAC/DC
Torque	90 in-lb (10.2 Nm)
Rotation Angle	90°
Feedback	Integrated Potentiometer (500Ω for 4-20mA, 1500Ω for PWM)
Ambient Temperature Range	-22°F to 122°F (-30°C to 50°C)
