NM24A-MOD | Damper Actuator | Modulating | communicative | hybrid | AC/DC 24V | 10 Nm | Belimo

Rotary Actuator, 90 in-lb [10 Nm], AC/DC 24 V, BACnet MS/TP, Modbus RTU, MP-Bus, 150 s, IP54

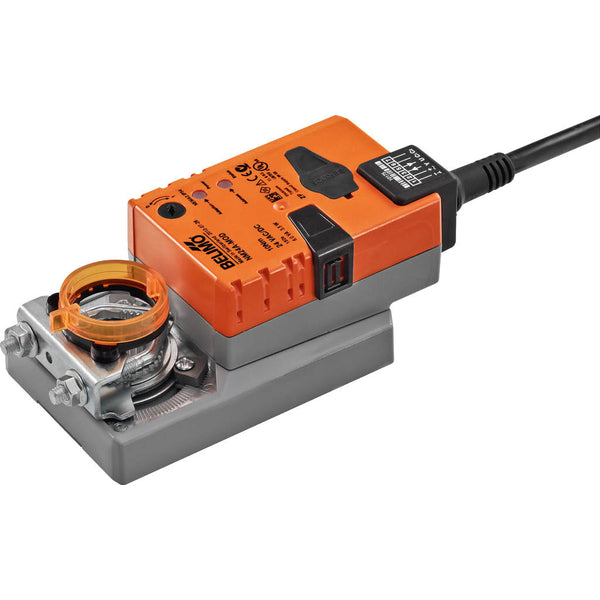

Belimo | NM24A-MOD
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to NM24A-MOD
DocumentsOverview SpecificationsParts & AccessoriesReviews

Documents and manuals

Belimo NM24A-MOD Documents

Datasheet Installation Instructions More Info

Overview

Details for NM24A-MOD

Damper Actuator | Modulating | communicative | hybrid | AC/DC 24V | 10 Nm

Damper Actuator, Modulating, communicative, hybrid, AC/DC 24 V, 10 Nm

DESCRIPTION

Communicative damper actuator for adjusting dampers in technical building installations

  • Air damper size up to approx. 2 m²
  • Torque motor 10 Nm
  • Nominal voltage AC/DC 24 V
  • Control modulating, communicative, hybrid
  • Conversion of sensor signals
  • Communication via BACnet MS/TP, Modbus RTU, Belimo-MP-Bus or conventional control

Specifications

Actuator Type
Non fail-safe
Angle of Rotation
95
Control Type
  • BACnet MS/TP
  • Modbus RTU
  • MP-Bus
  • DC 2...10 V
  • DC 0.5...10 V
  • Hybrid (communicative/analog)
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
With push-button can be locked
Mechanical Interface
Universal shaft clamp 8...26.7 mm
Power Consumption (Holding)
1.4 W
Power Consumption (Running)
3.5 W
Running Time (Motor)
150 s / 90B0
Running Time range (Motor)
43...173 s
Torque
90 in-lb [10 Nm]
Voltage AC/DC
AC/DC 24 V

Parts & Accessories

Belimo P2800A GR Feedback potentiometer 2800 ohms. | Blackhawk Supply
P2800A GR | Feedback potentiometer 2800 ohms. | Belimo
$103.05 each
Belimo S1A Auxiliary switch | 1x SPDT | 3A (0.5A inductive) @ 250 VAC max. | Blackhawk Supply
S1A | Auxiliary switch | 1x SPDT | 3A (0.5A inductive) @ 250 VAC max. | Belimo
$62.10 each
Belimo ZG-R01 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Blackhawk Supply
ZG-R01 | 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Belimo
$15.75 each
Belimo P140A GR Feedback potentiometer 140 ohms | Blackhawk Supply
P140A GR | Feedback potentiometer 140 ohms | Belimo
$103.05 each
Belimo ZS-100 Weather shield - galvaneal (13" L x 8" W x 6" D). | Blackhawk Supply
ZS-100 | Weather shield - galvaneal (13" L x 8" W x 6" D). | Belimo
$113.40 each
Belimo ZS-150 Weather shield - polycarbonate with foam seal (16" L x 8-3/8" W x 4" D). | Blackhawk Supply
ZS-150 | Weather shield - polycarbonate with foam seal (16" L x 8-3/8" W x 4" D). | Belimo
$126.00 each
