NFX24-MFT-X1 | Valve Actuator | Spg Rtn | 24V | MFT | Belimo

Configurable Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, MFT/programmable

Belimo | NFX24-MFT-X1

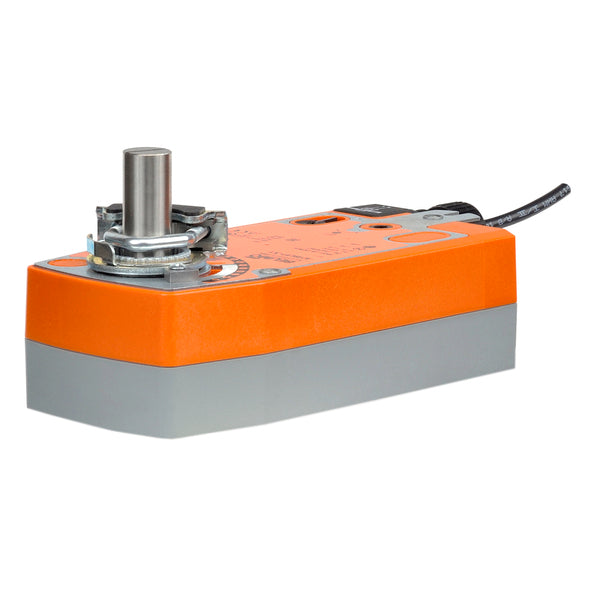

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to NFX24-MFT-X1

Documents and manuals

Belimo NFX24-MFT-X1 Documents

Overview

Details for NFX24-MFT-X1

Valve Actuator | Spg Rtn | 24V | MFT

For fail-safe, modulating control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. A feedback signal is provided for position indication.

Specifications

Valve specifications
Angle of Rotation
95
ANSI Class
300
Controllable Flow Range
75B0
Cv
24
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1" [25]
Actuator specifications
Actuator Type
Spring return
Control Type
MFT/Programmable
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
3 W
Power Consumption (Running)
6.5 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
150 s / 90B0
Voltage AC/DC
AC/DC 24 V
